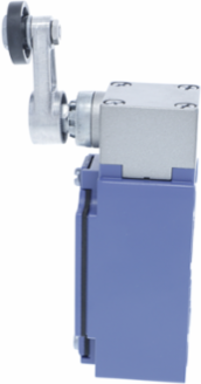

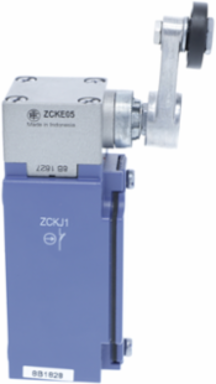

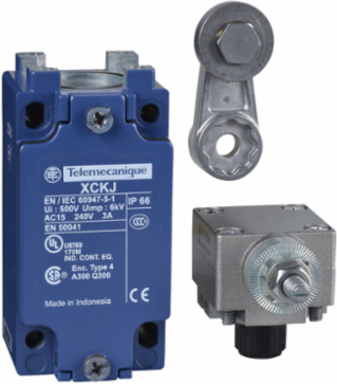

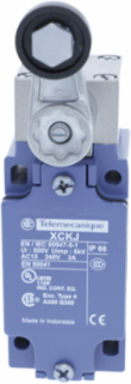

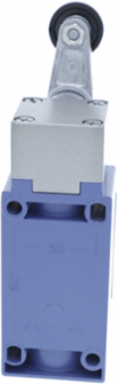

Telemecanique Sensors XCKJ10511H29 Limit switch, XC Standard, XCKJ, thermoplastic roller lever, 1NC+1 NO, snap action, M20
- MPN: XCKJ10511H29
- PPN: TES-XCKJ10511H29
- UNSPSC: 39122213
CAD
$189.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XCKJ industrial format (EN 50041) limit switch has a thermoplastic roller lever and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Fixing Mode
- by the body
- Sensor Design
- form A CENELEC EN 50041
- Product Or Component Type
- limit switch
- Material
- metal
- Type Of Approach
- lateral approach, 1 or 2 programmable direction
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- snap action
- Device Short Name
- XCKJ
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller lever thermoplastic
Cable Entry1 entry tapped for M20 x 1.5 cable gland 7-13 mm
Head Materialzamak
Head Typerotary head
Series Namestandard format
Body Typefixed
Body Materialzamak
Number Of Poles2
Complementary
- Height
- 77-77 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Number Of Steps
- 1
- Net Weight
- 0.48 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Contacts Insulation Form
- Zb
- Positive Opening Minimum Torque
- 0.5 N.m
- Maximum Actuation Speed
- 1.5 m/s
- Depth
- 44 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 1.5 mm²
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Openingwith
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Mechanical Durability30000000 cycles
Width40 mm
Minimum Torque For Tripping0.25 N.m
Environment
- Product Certifications
- CCC || UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK07 EN 50102
StandardsIEC 60947-5-1 || EN 60204-1 || CSA C22.2 No 14 || CENELEC EN 50041 || IEC 60204-1 || EN 60947-5-1 || UL 508
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
