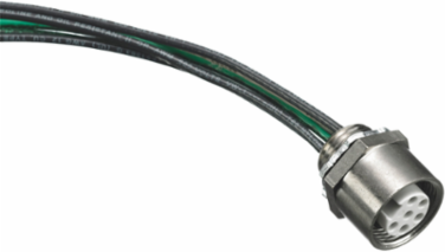

Hubbell Wiring Device-Kellems RF2003PA005 Linkosity Female Receptacle 20A 3W 5 Inch, 3-Pole, Composite Material
- MPN: RF2003PA005
- UPC: 783585116242
- PPN: HBL-RF2003PA005
- UNSPSC: 32151905
CAD
$215.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linkosity, Female Receptacle, 20A 3W, 5'
Features
- Linkosity20A 3W
- 5'
- Green/Yellow/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 7.900 in
- Application
- Power and Control Integration
- Conductor Size
- #12 AWG
- Number of Conductors
- 3
- Special Features
- Green/Yellow/Black Wires
- Wattage
- 12000
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Nema Rating
- Non-NEMA
- Number Of Poles
- 3-Pole
- Description - Invoice
- LINKOSITY FEM. RCPT. 20A, 3W, 5'
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Construction
- Fabricated
- Material
- Composite
- BOX SIZE
- 8.245x5.000x10.125 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585116242
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
Current / Amperage Rating20 A
Amperage Rating20 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles3-Pole
Voltage Rating600V Max kV
Engineering Drawing 1 Display TextRF2003PA005 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors3
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack100.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
