Weidmuller 9200090000 LIR 1,5M4 V
- MPN: 9200090000
- PPN: WDM-9200090000
CAD
$0.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²
Documentation & Downloads

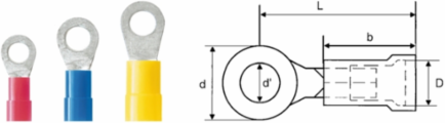

Specifications
Connectors
| Conductor cross-section, max. | 1.5 mm² |
|---|---|
| Connection density (S1) | 0.75 mm |
| Dimension | M 4 |
| Identification colour | red |
| Insulation | Available |
| Outside diameter (d) | 8 mm |
| Plastic collar length (b) | 11.3 mm |
| Conductor cross-section, min. | 0.5 mm² |
|---|---|
| Connection length (I) | 18.3 mm |
| Dimension (bolt) | M 4 |
| Inside diameter (d1) | 4.3 mm |
| Material/plastic | PVC |
| Plastic collar diameter (D) | 4 mm |
Approvals
| Approvals | GOSTME25 |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 22.4 mm |
|---|---|
| Depth | 5.9 mm |
| Net weight | 0.71 g |
| Width (inches) | 0.882 inch |
|---|---|
| Depth (inches) | 0.232 inch |
Classifications
| ETIM 6.0 | EC001059 |
|---|---|
| eClass 9.0 | 27-40-02-92 |
| eClass 10.0 | 27-40-02-92 |
| ETIM 7.0 | EC001059 |
|---|---|
| eClass 9.1 | 27-40-02-12 |
| UNSPSC | 23-17-16-04 |
