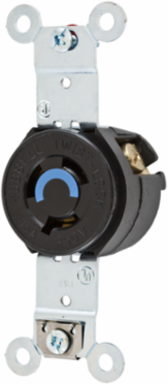

Hubbell Wiring Device-Kellems HBL4560 15A 250V Industrial Twist-Lock Receptacle, NEMA L6-15R, 3-Wire
- MPN: HBL4560
- UPC: 783585236605
- PPN: HBL-HBL4560
CAD
$37.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Black.
Features
- Reinforced thermoplastic construction
- Standard
- Single piece, all brass contacts
- All terminals are back and side wired
- Brass mounting strap with stainless steel grounding clip
Documentation & Downloads
Specifications
Key Specifications
- Application
- Heavy Duty Industrial
- Horsepower - Maximum
- 1.5
- Material
- Thermoplastic
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- UPC
- 783585236605
- Height
- 1.27 in
- Weight
- 0.15 lb
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 250 V
- Wattage
- 3750 W
- Wire Size
- #18 AWG to #10 AWG
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Item Type15A Single Flush Receptacle
Material - Mounting HardwareScrew Mounting
OEM Brand NameHubbell Wiring Device-Kellems
TypeReceptacle
Display SizeStandard Sized Product
Length3.28 in
Width1.53 in
ConnectivityBack and Side Wired
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description250 V
Number Of Wires3-Wire
Carton Quantity10 EA
