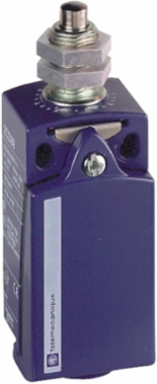

Telemecanique Sensors XCKD21H0G11 Limit switch, Limit switches XC Standard, XCKD, M18 metal end plunger, 1NC+1 NO, snap, Pg11
- MPN: XCKD21H0G11
- PPN: TES-XCKD21H0G11
CAD
$82.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKD, M18 metal end plunger, 1NC+1 NO, snap, Pg11
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the head
- Sensor Design
- compact
- Head Material
- zamak
- Head Type
- M18 plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Product Or Component Typelimit switch
Materialmetal
Type Of Approachvertical approach, 1 direction
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKD
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Net Weight
- 0.22 kg
- Switch Actuation
- on end
- Electrical Durability
- 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 10000000 cycles
- Minimum Force For Tripping
- 15 N
- Width
- 31 mm
- Repeat Accuracy
- 0.1 mm on the tripping points with 1 million operating cycles
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Minimum Actuation Speed0.01 m/min
Cable Entry1 entry tapped for Pg 11 cable gland
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Force45 N
Contacts Insulation FormZb
Maximum Actuation Speed0.5 m/s
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN 60947-5-1 || A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN 60947-5-1 || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A IEC 60947-5-1 appendix A
Depth30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- UL || CSA || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Ip Degree Of Protection
- IP66IEC 60529 || IP67IEC 60529
- Vibration Resistance
- 25 gn 10-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK06 EN 50102
StandardsUL 508 || IEC 60204-1 || EN 60947-5-1 || EN 60204-1 || CSA C22.2 No 14 || IEC 60947-5-1
Shock Resistance50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
