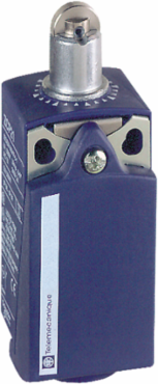

Telemecanique Sensors XCKP2902P16 Limit switch, Limit switches XC Standard, XCKP, steel roller plunger, 2NC, snap, M16

MPN: XCKP2902P16
PPN: TES-XCKP2902P16

$60.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCKP, steel roller plunger, 2NC, snap, M16

Documentation & Downloads

Specifications

Key Specifications

Type Of Approach	lateral approach, 2 directions
Contacts Type And Composition	2 NC
Body Type	fixed
Contact Operation	snap action
Type Of Operator	spring return roller plunger metal
Body Material	plastic
Head Material	zamak
Device Short Name	XCKP
Head Type	plunger head

Series Name	standard format
Movement Of Operating Head	linear
Range Of Product	Telemecanique Limit switches XC Standard
Fixing Mode	by the body
Sensor Design	compact form C CENELEC EN 50047
Product Or Component Type	limit switch
Material	plastic
Number Of Poles	2

Complementary

Switch Actuation	by 30° cam
Height	65-65 mm
Short-Circuit Protection	10 A cartridge fuse gG
Positive Opening Minimum Force	36 N
Minimum Actuation Speed	0.01 m/min
Electrical Connection	screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Maximum Actuation Speed	0.5 m/s
Minimum Force For Tripping	12 N
Width	31 mm
Net Weight	0.095 kg
Repeat Accuracy	0.1 mm on the tripping points with 1 million operating cycles

[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Terminals Description Iso N°1	(21-22)NC \|\| (13-14)NO
Electrical Durability	5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Contacts Insulation Form	Zb
Mechanical Durability	10000000 cycles
Cable Entry	1 entry tapped for M16 x 1.5 cable gland 4-8 mm
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A \|\| Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth	30 mm
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Environment

Product Certifications	UL \|\| CSA \|\| CCC
Ambient Air Temperature For Operation	-25-70 °C
Standards	IEC 60947-5-1 \|\| EN 60204-1 \|\| CSA C22.2 No 14 \|\| EN 60947-5-1 \|\| IEC 60204-1 \|\| UL 508
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Protective Treatment	TC

Ik Degree Of Protection	IK04 EN 50102
Ambient Air Temperature For Storage	-40-70 °C
Electrical Shock Protection Class	class II IEC 61140 \|\| class II NF C 20-030
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529

Contractual warranty

Warranty	18 months

Offer Sustainability

Circularity Profile	ENVEOLI110603EN
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
