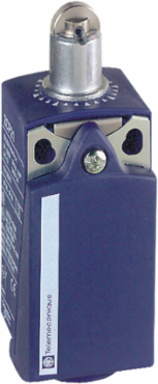

Telemecanique Sensors XCKP2102P20 Limit switch, Limit switches XC Standard, lmt 240 V AC, 3 A, plastic, XCKP
- MPN: XCKP2102P20
- PPN: TES-XCKP2102P20
CAD
$86.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, lmt 240 V AC, 3 A, plastic, XCKP
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- lateral or vertical approach, 1 direction
- Contacts Type And Composition
- 1 NC + 1 NO
- Body Type
- fixed
- Contact Operation
- snap action
- Type Of Operator
- spring return roller lever plunger thermoplastic
- Body Material
- plastic
- Head Material
- zamak
- Device Short Name
- XCKP
- Head Type
- plunger head
Series Namestandard format
Movement Of Operating Headlinear
Range Of ProductTelemecanique Limit switches XC Standard
Fixing Modeby the body
Sensor Designcompact
Product Or Component Typelimit switch
Materialplastic
Number Of Poles2
Complementary
- Switch Actuation
- by 30° cam
- Height
- 65-65 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Positive Opening Minimum Force
- 18 N
- Contacts Insulation Form
- Zb
- Mechanical Durability
- 15000000 cycles
- Cable Entry
- 1 entry tapped for M20 x 1.5 cable gland 4-8 mm
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
- Depth
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Electrical Durability5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 1.5 mm²
Maximum Actuation Speed1 m/s
Minimum Force For Tripping6 N
Width31 mm
Net Weight0.105 kg
Repeat Accuracy0.1 mm on the tripping points with 1 million operating cycles
Environment
- Product Certifications
- CCC || UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN 60204-1 || UL 508 || IEC 60204-1 || EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-1
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Protective Treatment
- TC
Ik Degree Of ProtectionIK04 EN 50102
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140 || class II NF C 20-030
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
