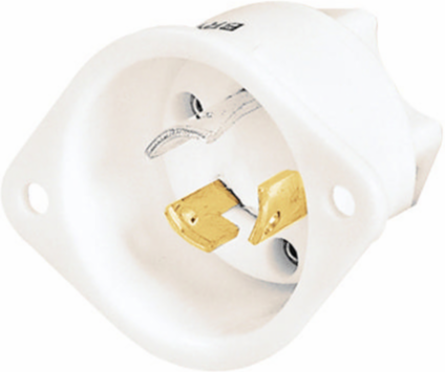

Bryant 7556MB Industrial Flanged Inlet Locking Device, 15A 125V/10A 250V, 3-Pole, Black
Bryant 7556MB Industrial Flanged Inlet Locking Device, 15A 125V/10A 250V, 3-Pole, Black
- MPN: 7556MB
- UPC: 781786405356
- PPN: HBL-7556MB
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$75.75/ EA
Description
Locking Devices, Industrial, Flanged Inlet, 10A 250V, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black
Features
- Flanged Inlet
- 10A 250V
- 3-Pole 3-Wire Non-Grounding
- Non-NEMA
- Screw Terminal
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Height
- 1.68 in
- Amperage Rating
- 10 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- Non-NEMA
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #14 AWG to #10 AWG
- Width
- 2.38 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Equipment Base
- Description - Invoice
- LKG FLG-INLT, 3P3W, 15A125/10A250V
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786405356
- Each - Pack Description
- Each
Dimensions1.84 in x 2.38 in x 1.68 in
Length1.84 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles3-Pole
Size1.84 in x 2.38 in x 1.68 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating250 V
Voltage Rating Description250V
ConnectivityScrew Terminals
Nema RatingNon-NEMA
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A173
Current Rating10 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.45 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
Downloads
