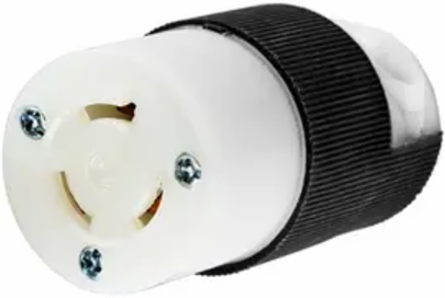

Hubbell Wiring Device-Kellems HBL4579C Twist-Lock Female Connector, 15A 250V, 2-Pole, 3-Wire, Black and White
Hubbell Wiring Device-Kellems HBL4579C Twist-Lock Female Connector, 15A 250V, 2-Pole, 3-Wire, Black and White
- MPN: HBL4579C
- UPC: 783585170107
- PPN: HBL-HBL4579C
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$45.26/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15R, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE insert accomodates a wide range of cord diameters
- Standard Product
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 1.53 in x 1.53 in x 2.78 in
- Height
- 2.78 in
- Length
- 1.53 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L6-15R
- Size
- 1.53 in x 1.53 in x 2.78 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Type
- Connector Body
- Voltage Rating Description
- 250 V
- Width
- 1.53 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L6-15R
- Number Of Wires
- 3-Wire
- Wire Size
- #18 AWG to #10 AWG
- Description - Invoice
- LKG CONN, 15A 250V, L6-15R, B/W
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.230"-0.720"(5.8-18.3)
- Cord Diameter
- 0.230-0.720 in
- Material
- Nylon
- BOX SIZE
- 3.600x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585170107
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585170106
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Each - Width1.900 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating15 A
ColorNoir, blanc
InsulationInsulated Body
Number of Poles2-Pole
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating250 V
Weight0.15 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4579C
Cable Range0.230 - 0.720 in
Material - Mounting HardwareCord Mounted
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight11.569 lb.
Lowest Level UOMEach
Pallet Height39.600 in
Pallet Weight795.600 lb.
Certifications
- EU RoHS Indicator
- Yes
