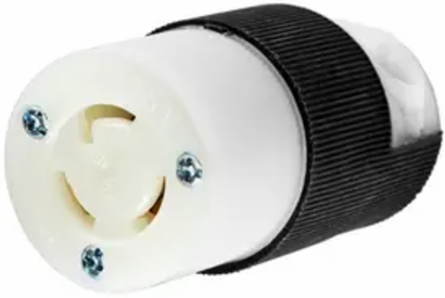

Hubbell Wiring Device-Kellems HBL4729C Locking Connector Body, 15A 125V, 2-Pole 3-Wire, NEMA L5-15R
Hubbell Wiring Device-Kellems HBL4729C Locking Connector Body, 15A 125V, 2-Pole 3-Wire, NEMA L5-15R
- MPN: HBL4729C
- UPC: 783585171357
- PPN: HBL-HBL4729C
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$36.15/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE insert accomodates a wide range of cord diameters
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL4729C AutoCAD Drawing
- General Literature Asset 2 Display Text
- Education Application Guide
- Country of Origin
- United States
- Dimensions
- 1.53 in x 1.53 in x 2.78 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 15 A
- Color
- Noir, blanc
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 125 V
- Weight
- 0.15 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4729C
- Cable Range
- 0.230 - 0.720 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 11.351 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 38.800 in
- Pallet Weight
- 792.000 lb.
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextHealthcare Application Guide
Current / Amperage Rating15 A
Height2.78 in
Length1.53 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL5-15P
Size1.53 in x 1.53 in x 2.78 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
TypeConnector Body
Voltage Rating Description125 V
Width1.53 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL5-15P
Number Of Wires3-Wire
Wire Size#18 AWG to #10 AWG
Description - InvoiceLKG CONN, 15A 125V, L5-15R, B/W
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.230"-0.720"(5.8-18.3)
Cord Diameter0.230-0.720 in
MaterialNylon
BOX SIZE3.500x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585171357
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585171356
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
