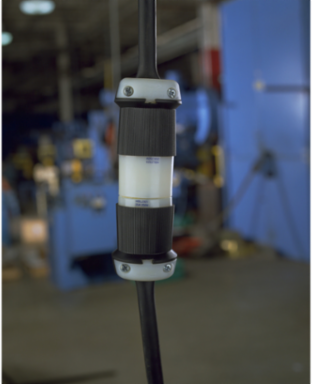

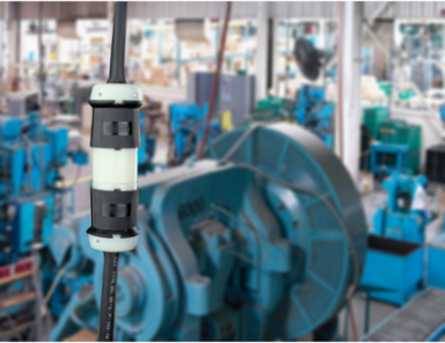

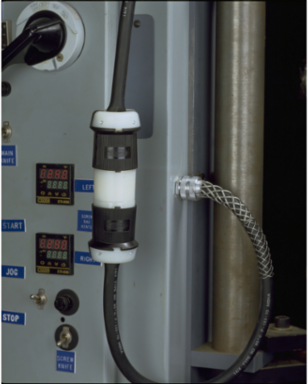

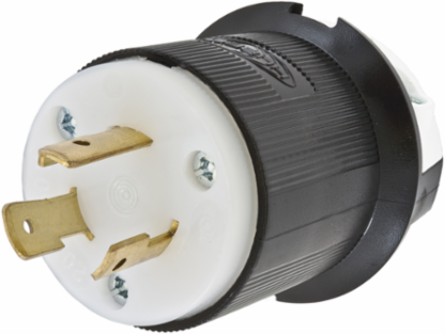

Hubbell HBL2321 Industrial Twist-Lock Male Plug, 20A 250V, 2-Pole, 3-Wire, Black & White
- MPN: HBL2321
- UPC: 783585037820
- PPN: HBL-HBL2321
- UNSPSC: 39121402
CAD
$34.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20P, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Number of Poles | 2-Pole |
| NEMA Rating | L6-20P |
| Cable Range | 0.360 - 0.930 in |
| Width | 2.26 in |
| Size | 2.26 in x 2.26 in x 2.75 in |
| Wire Size | #16 AWG to #8 AWG |
| Terminal Type | Screw Terminal |
| Country of Origin | US |
| Voltage | 250 V AC |
|---|---|
| Number of Wires | 3-Wire |
| Operating Temperature Range | -40 C to 75 C |
| Length | 2.26 in |
| Height | 2.75 in |
| Weight | 0.20 lb |
| Material | Nylon |
| Compliance | UL Listed, CSA Certified, RoHS Compliant |
| Color | Black, White |
