Bryant

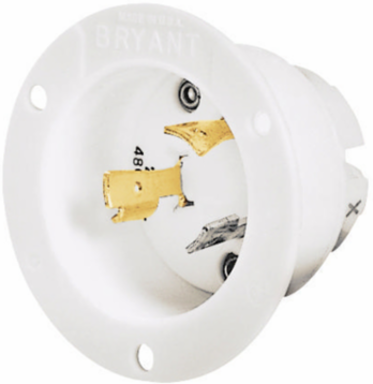

Bryant 70720MB Flanged Inlet Locking Device, 20A 277V AC, 2-Pole 3-Wire, 2.88 Inch x 2.88 Inch x 2.02 Inch

Flanged Inlet Locking Device, 20A 277V AC, 2-Pole 3-Wire, 2.88 Inch x 2.88 Inch x 2.02 Inch
  • MPN: 70720MB
  • UPC: 781786690066
  • PPN: HBL-70720MB
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$58.42/ EA

Description

Locking Devices, Industrial, Flanged Inlet, 20A 277V AC, 2-Pole 3-Wire Grounding, L7-20P, Screw Terminal, White

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws
  • Mounting screws included
  • Standard Product

Specifications

Specifications

Country of Origin
Puerto Rico
Height
2.02 in
Amperage Rating
20 A
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
NEMA Rating
L7-20P
Number of Wires
3-Wire
Special Features
Standard Product
Type
Flanged Inlet
Wire Size
#18 AWG to #8 AWG
Width
2.88 in
Display Size
Standard Sized Product
Number Of Poles
2-Pole
Style
Equipment Base
Description - Invoice
LKG FLG-INLT, 20A 277V, L7-20P, WH
Harmonization Code
8536694020
MSDS Flag
No
Material - Mounting Hardware
Screw Mounting
Material
Composite
BOX SIZE
5.300x14.600x6.100 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
781786690066
Each - Pack Description
Each
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles2-Pole
Size2.88 in x 2.88 in x 2.02 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating277 VAC
Voltage Rating Description277V AC
ConnectivityScrew Terminals
Nema RatingL7-20P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.25 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
