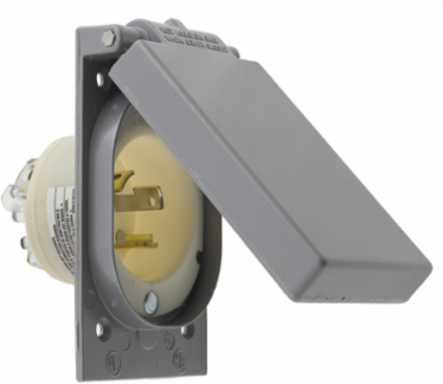

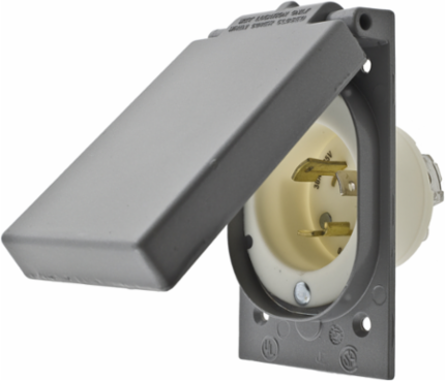

Bryant 70530MBWP Locking Device, Flanged Inlet 30A 125V, 2-Pole 3-Wire, Weatherproof Cover, 2.88 Inch
- MPN: 70530MBWP
- UPC: 781786688865
- PPN: HBL-70530MBWP
- UNSPSC: 39121406
CAD
$273.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, White, With Weatherproof Cover
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Weather Protective Cover
- Integral Weatherproofing Cover
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2.02 in
- Amperage Rating
- 30 A
- Color
- White
- Environmental Conditions
- Weather Resistant
- NEMA Rating
- L5-30P
- Number of Wires
- 3-Wire
- Special Features
- Integral Weatherproofing Cover
- Type
- Flanged Inlet
- Wire Size
- #14 AWG to #8 AWG
- Width
- 2.88 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Weatherprotective
- Description - Invoice
- LKG FLG-INLT, 30A 125V, L5-30P, W/P
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786688865
- Each - Pack Description
- Each
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3500V
InsulationInsulated Body
Number of Poles2-Pole
Size2.88 in x 2.88 in x 2.02 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating125 V
Voltage Rating Description125 V
ConnectivityScrew Terminals
Nema RatingL5-30P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
