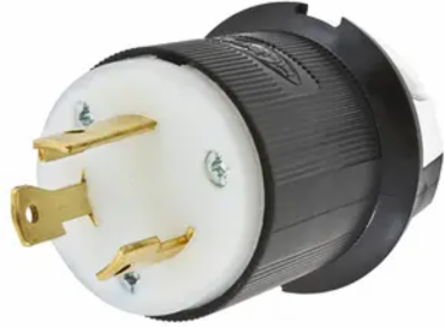

Hubbell Wiring Device-Kellems HBL2611 Twist-Lock Male Plug, 30A 125V, 2-Pole 3-Wire, L5-30P, Nylon, 2.26 Inch x 2.26 Inch x 2.75 Inch
- MPN: HBL2611
- UPC: 783585038735
- PPN: HBL-HBL2611
- UNSPSC: 39121402
CAD
$54.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
30 Amp Twist-Lock Male Plug - 30A 125V, 2-Pole 3-Wire Grounding, L5-30P
Features
- Enhanced cord grip design minimizes strain on terminations
- Funnel-shaped, clear wire entry simplifies the termination process
- Built-in dust shield safeguards the wiring chamber from dust and contaminants.
- The 30 Amp Twist-Lock Male Plug features a robust Twist-Lock® mechanism that ensures a secure and stable connection, preventing accidental disconnections and enhancing safety.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Horsepower Maximum
- 2 HP
- Number of Wires
- 3-Wire
- Wire Size Range
- #16 AWG to #8 AWG
- Connectivity
- Pressure Terminal Screws
- Dimensions
- 2.26 in x 2.26 in x 2.75 in
- Material
- Nylon
- Environmental Rating
- IP20
Voltage125 VAC
Number of Poles2-Pole
Cable Range0.360 - 0.930 in
Operating Temperature-40°C to 75°C maximum continuous
NEMA RatingL5-30P
Weight0.25 lb.
CertificationsCSA C22.2 No.42; UL 498; Fed.Spec. W-C-596; RoHS Compliant
Country of OriginUS
