Bryant

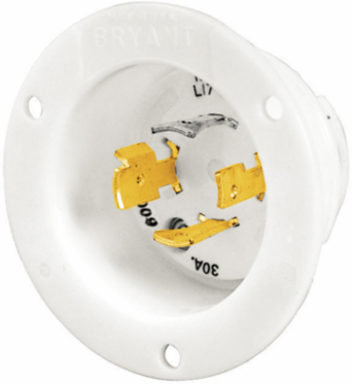

Bryant 71730MB 30A Flanged Inlet Locking Device, 3-Pole 4-Wire, 600V AC, White

30A Flanged Inlet Locking Device, 3-Pole 4-Wire, 600V AC, White
  • MPN: 71730MB
  • UPC: 781786697669
  • PPN: HBL-71730MB
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$143.77/ EA

Description

Locking Devices, Industrial, Flanged Inlet, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30P, Screw Terminal, White

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws
  • Mounting screws included
  • Standard Product

Specifications

Specifications

NEMA Rating
L17-30P
Number of Wires
4-Wire
Special Features
Standard Product
Color
White
Height
2.02 in
Voltage Rating
3 Phase 600 VAC
Width
2.88 in
Application
Extra Heavy Duty Industrial
Dielectric Strength
Withstands 3500V
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
L17-30P
Number Of Wires
4-Wire
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wire Size
#14 AWG to #8 AWG
Description - Invoice
LKG FLG-INLT, 30A 3PH 600V, L17-30P,WH
Harmonization Code
8536699999
MSDS Flag
No
Material - Mounting Hardware
Screw Mounting
Material
Composite
BOX SIZE
5.300x14.600x6.100 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
781786697669
Each - Pack Description
Each
Number of Poles3-Pole
Size2.88 in x 2.88 in x 2.02 in
Country of OriginUnited States
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
Voltage Rating Description3 Phase 600V AC
Amperage Rating30 A
ConnectivityScrew Terminals
Display SizeStandard Sized Product
InsulationInsulated Body
Number Of Poles3-Pole
StyleEquipment Base
TypeFlanged Inlet
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.5 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
