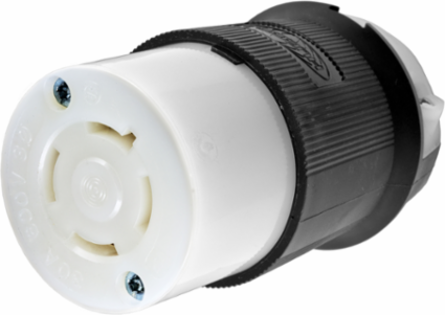

Hubbell Wiring Device-Kellems HBL2743 Twist-Lock Female Connector, 30A 3-Pole, 600V AC, Nylon
- MPN: HBL2743
- UPC: 783585039398
- PPN: HBL-HBL2743
- UNSPSC: 39121421
CAD
$136.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30R, Screw Terminal, Black and White
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Number of Poles | 3-Pole |
| Number of Wires | 4-Wire Grounding |
| Dimensions | 2.33 in x 2.33 in x 3.86 in |
| Width | 2.33 in |
| Material | Nylon |
| Terminal Type | Screw Terminal |
| Dielectric Strength | 2000 V minimum |
| NEMA Rating | L17-30R |
| Country of Origin | US |
| Voltage | 600 V AC, 3 Phase |
|---|---|
| Phase | Three Phase Delta |
| Cord Range | 0.350 - 1.150 in |
| Height | 3.86 in |
| Length | 2.33 in |
| Connectivity | Pressure Terminal Screws |
| Wire Size | #16 AWG to #8 AWG stranded copper wire |
| Operating Temperature | -40 C to 85 C |
| Compliance | UL Listed, CSA Certified, RoHS Compliant |
| Color | Noir, blanc |
