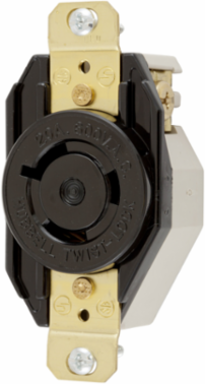

Hubbell Wiring Device-Kellems HBL2350 Twist-Lock™ Industrial Flush Receptacle 20A 600V AC, 2-Pole, 3-Wire, L9-20R
Hubbell Wiring Device-Kellems HBL2350 Twist-Lock™ Industrial Flush Receptacle 20A 600V AC, 2-Pole, 3-Wire, L9-20R
- MPN: HBL2350
- UPC: 783585235721
- PPN: HBL-HBL2350
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$62.14/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 600V AC, 2-Pole 3-Wire Grounding, NEMA L9-20R, Screw Terminal, Nylon face, Back and side wire, Black.
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL2350 AutoCAD Drawing
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.7 in x 1.23 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L9-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.7 in x 1.23 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
- Voltage Rating
- 600 VAC
- Voltage Rating Description
- 600 VAC
- Width
- 1.7 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG RCPT, 20A 600V, L9-20R, BK
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.85 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 9.600 lb.
- Lowest Level UOM
- Each
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Current / Amperage Rating20 A
Height1.23 in
Length3.28 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard
TypeSingle Flush Receptacle
Wire Size#16 AWG to #8 AWG
Weight0.25 lb.
ConnectivityBack and Side Wired Screw Terminals
Nema RatingL9-20R
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2350A
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.800x10.000x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585235721
Case - Total Units30 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
