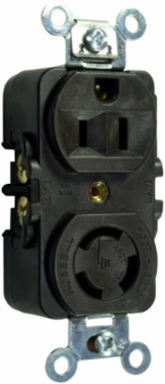

Hubbell Wiring Device-Kellems HBL7371 Twist-Lock® Combination Face Duplex Receptacle, 15A 125V/10A 250V, 2-Pole 3-Wire Grounding, Brown
- MPN: HBL7371
- UPC: 783585237152
- PPN: HBL-HBL7371
- UNSPSC: 39121406
CAD
$127.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Combination Face Duplex Receptacle, 15A 125V/10A 250V,15A 125 V, 2-Pole 3-Wire Grounding, 5-15R and Non NEMA, Screw Terminal, Brown, 2) Feeds 1) Return
Features
- Industrial
- Combination Face Duplex Receptacle
- 15A 125V/10A 250V
- Standard
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.5 in x 0.88 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Brown
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Voltage Rating
- 125/250 V
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.25 lb.
- Engineering Drawing 1 Display Text
- HBL7371 AutoCAD Drawing
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- DUP RCPT,COMB 5-15RNON-NEMA LKG,BR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A08A160
- Current Rating
- 15 A
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237152
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15/10 A,15 A
Height0.88 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2 or better;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHeavy Duty
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.5 in x 0.88 in
StandardCertified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186
Wattage1875 W
Voltage Rating Description125 V;250 V
Width1.5 in
ConnectivityScrew Terminals
Nema Rating5-15R
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7371
Material - Mounting HardwareScrew Mounting
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.95 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.500 lb.
Lowest Level UOMEach
