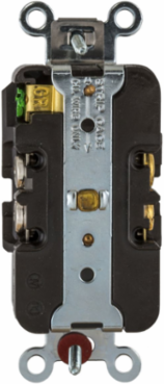

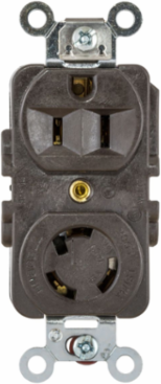

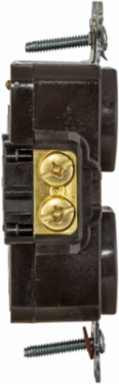

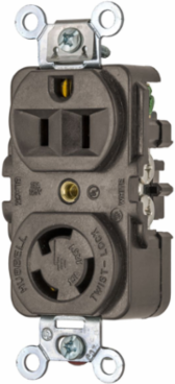

Hubbell Wiring Device-Kellems HBL4794 Twist-Lock Duplex Receptacle 15A 125V, 2-Pole 3-Wire Grounding
- MPN: HBL4794
- UPC: 783585237008
- PPN: HBL-HBL4794
- UNSPSC: 39121406
CAD
$103.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® Industrial Combination Face Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R and L5-15R, Screw Terminal, Two Feeds One Return
Features
- Industrial
- Combo Face Duplex Receptacle
- 15A 125V
- 2-Pole 3-Wire Grounding
- Standard
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.28 in x 1.5 in x 0.88 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Brown
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Type
- Duplex Receptacle
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.25 lb.
- Engineering Drawing 1 Display Text
- HBL4794 AutoCAD Drawing
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4794
- Material - Mounting Hardware
- Screw Mounting
- Series
- Special Combination Receptacle
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237008
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height0.88 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2 or better;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHeavy Duty
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R, L5-15R
Number of Wires3-Wire
Size3.28 in x 1.5 in x 0.88 in
StandardCertified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186
Voltage Rating125 V
Voltage Rating Description125 V
Width1.5 in
ConnectivitySide Wired
Nema Rating5-15R, L5-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceLKG COMB DUP RCPT NEMA 5&L5-15R, 2H1N
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight25.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
