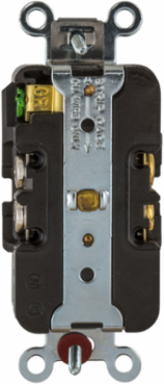

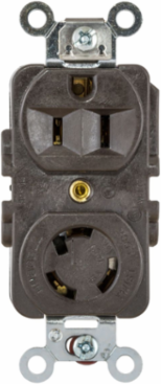

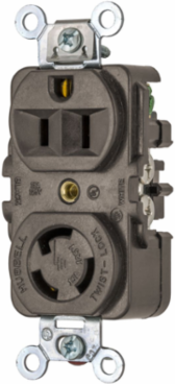

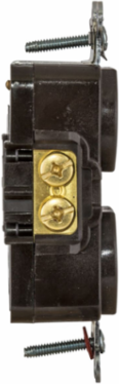

Hubbell Wiring Device-Kellems HBL4792 Twist-Lock Industrial Combination Face Duplex Receptacle 15A 125V 3.28 Inch
- MPN: HBL4792
- UPC: 783585236995
- PPN: HBL-HBL4792
- UNSPSC: 39121406
CAD
$85.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Twist-Lock® Industrial Combination Face Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R and L5-15R, Screw Terminal, One Feed One Return
Features
- Industrial
- Combo Face Duplex Receptacle
- 15A 125V
- 2-Pole 3-Wire Grounding
- Standard
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL4792 AutoCAD Drawing |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 0.88 in |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2 or better;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 15 A |
| Color | Brown |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Standard |
| Type | Duplex Receptacle |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.3 lb. |
| Connectivity | Back and Side Wired |
| Nema Rating | 5-15R, L5-15R |
| Number Of Wires | 3-Wire |
| Style | Finder Groove Face |
| Description - Invoice | LKG COMB DUP RCPT NEMA 5&L5-15R, 1H1N |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Sub Class Code | A08A110 |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.1 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 30.000 lb. |
| Lowest Level UOM | Each |
| Country of Origin | United States |
|---|---|
| Dimensions | 3.28 in x 1.5 in x 0.88 in |
| Horsepower - Maximum | 0.5 |
| Length | 3.28 in |
| Standards - RoHS Compliance Status | CM |
| Application | Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-15R, L5-15R |
| Number of Wires | 3-Wire |
| Size | 3.28 in x 1.5 in x 0.88 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186 |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Width | 1.5 in |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 4792 |
| Material - Mounting Hardware | Screw Mounting |
| Series | Special Combination Receptacle |
| BOX SIZE | 3.238x9.178x4.298 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585236995 |
| Case - Total Units | 100 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
