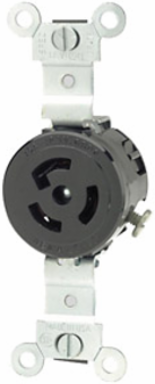

Leviton 4710 Industrial Grade 15 Amp 125 Volt NEMA L5-15R Locking Receptacle, Black
- MPN: 4710
- UPC: 078477796986
- PPN: LEV-4710
CAD
$21.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

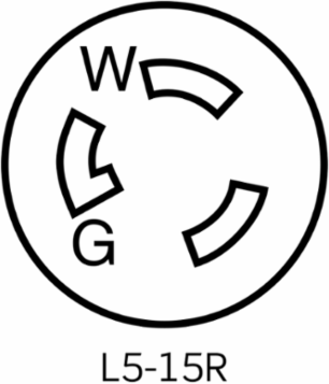

15 Amp, 125 Volt, NEMA L5-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for motor loads, such as shop vacs and pool pumps, and generators
Documentation & Downloads
Specifications
Additional
| Amperage | 15 A |
|---|---|
| At Rated Voltage | 1/2 HP |
| Wire | 3 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Terminal Accom. | 18-10 AWG |
| Operating Temperature | -40 C to 60 C |
| NEMA | WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| ANSI | C-73 |
| RoHS Compliant | True |
| Temperature Rise | Max 30 C after 250 cycles OL at 200% rated current |
| Strap Material | Nickel-Plated Brass |
| Yoke | Zinc-Plated Steel |
| Body Material | Nylon |
| Line Contacts | Brass .031 Thick |
| Environment | Dry |
| Country of Origin | Mexico |
| Voltage | 125 VAC |
|---|---|
| Pole | 2 |
| Grounding | Yes |
| Screw Terminal Torque | 14-18 in-lbs |
| Termination | Side |
| Flammability | Rated V-2 per UL 94 |
| NOM | 057 |
| UL498 | File E13399 |
| CSA C22.2 No. 42 | File LR-406 |
| Current Limiting | Full Rated Current |
| Grounding Screw | Brass 8-32 |
| Terminal Screws | Brass 10-32 |
| Face Material | Nylon |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Cord Range | 0.230 to 0.700 |
| Color | Black |
