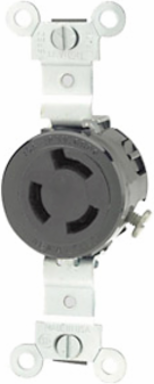

Leviton 4560 15 Amp 250 Volt NEMA L6-15R Single Locking Receptacle, Industrial Grade, Black
- MPN: 4560
- UPC: 078477797020
- PPN: LEV-4560
CAD
$14.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

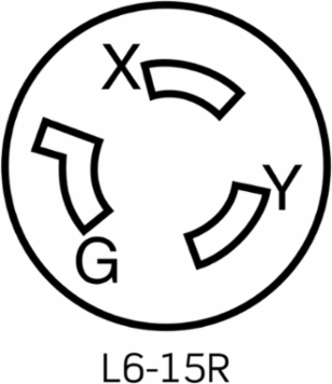

15 Amp, 250 Volt, NEMA L6-15R, 2P, 3W, Single Locking Receptacle, Industrial Grade, Grounding - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- NEMA
- WD-6
- Wires
- 3
- Horsepower Rating
- 1.5 HP
- Screw Terminal Torque
- 14-18 in-lbs
- Dielectric Voltage
- Withstands 2000 V per UL498
- Material
- Nylon, Brass, Nickel-Plated Brass, Zinc-Plated Steel
- Line Contacts
- .031 Thick Brass
- Grounding Screw
- Brass 8-32
- Body Material
- Nylon
- Strap Material
- Nickel-Plated Brass
- UL498
- File E13399
- NOM
- 057
- ANSI
- C-73
- Environment
- Dry
Voltage250 VAC
Poles2
Device TypeLocking Receptacle
Terminal Accommodation18-10 AWG
GroundingYes
Temperature Range-40°C to 60°C
Terminal ScrewsBrass 10-32
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
YokeZinc-Plated Steel
Face MaterialNylon
Flammability RatingV-2 per UL 94
UL Fed Spec WC-596File E13399
RoHS CompliantTrue
CSA C22.2 No. 42File LR-406
Country of OriginMexico
