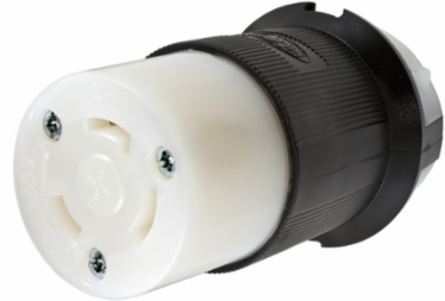

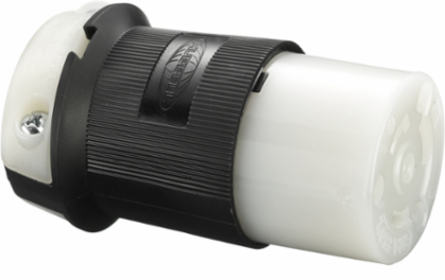

Hubbell Wiring Device-Kellems HBL2623 Twist-Lock Female Connector, 30A 250V, L6-30R, 3-Wire Grounding, 2.26 Inch x 2.26 Inch x 3.86 Inch
Hubbell Wiring Device-Kellems HBL2623 Twist-Lock Female Connector, 30A 250V, L6-30R, 3-Wire Grounding, 2.26 Inch x 2.26 Inch x 3.86 Inch
- MPN: HBL2623
- UPC: 783585038865
- PPN: HBL-HBL2623
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$99.52/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black and White.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Buy American Compliant
- Yes
- Current / Amperage Rating
- 30 A
- Each - Width
- 2.500 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Noir, blanc
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Special Features
- Standard Product
- Type
- Connector Body
- Voltage Rating Description
- 250 VAC
- Width
- 2.26 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L6-30R
- Number Of Wires
- 3-Wire
- Phase
- Single Phase
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2623
- Cable Range
- 0.360 - 0.930 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585038864
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUS
Dimensions2.26 in x 2.26 in x 3.86 in
Height3.86 in
Length2.26 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL6-30R
Size2.26 in x 2.26 in x 3.86 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating250 VAC
Weight0.25 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#16 AWG to #8 AWG
Description - InvoiceLKG CONN, 30A 250V, L6-30R, B/W
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.360"-0.930" (9-24)
Cord Diameter0.360-0.930 in
MaterialNylon
BOX SIZE7.900x12.700x9.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585038865
Case Weight11.400 lb.
Lowest Level UOMEach
Pallet Height47.400 in
Pallet Weight1152.600 lb.
Certifications
- EU RoHS Indicator
- Yes
