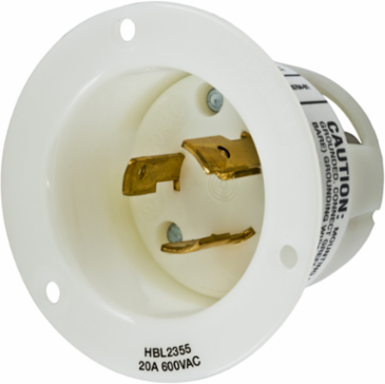

Hubbell Wiring Device-Kellems HBL2355 Insulgrip® Twist-Lock® Flanged Inlet, 20A 600V AC, 2-Pole, 3-Wire, White
- MPN: HBL2355
- UPC: 783585038063
- PPN: HBL-HBL2355
- UNSPSC: 39121406
CAD
$65.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 600V AC, 2-Pole 3-Wire Grounding, NEMA L9-20P, Screw Terminal, Nylon casing, Back wired, White.
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2355 AutoCAD Drawing
- Country of Origin
- United States
- Dimensions
- 2.88 in x 2.88 in x 2.09 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L9-20P
- Number of Wires
- 3-Wire
- Size
- 2.88 in x 2.88 in x 2.09 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 600 VAC
- Voltage Rating Description
- 600 VAC
- Width
- 2.88 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-INLT, 20A 600V, L9-20P, WH
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A36A390
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 6.000 lb.
- Lowest Level UOM
- Each
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Current / Amperage Rating20 A
Height2.09 in
Length2.88 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Weight0.2 lb.
ConnectivityBack Wired Screw Terminals
Nema RatingL9-20P
Number Of Wires3-Wire
Class CodeA36
Freight Class Code06122503
Image Actual Or RepresentativeA
Replaced Catalog Number2355
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.168x12.548x6.168 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585038063
Case - Total Units30 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
