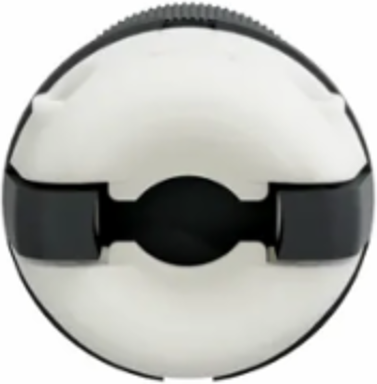

Hubbell Wiring Device-Kellems HBL2321ST EdgeConnect Twist-Lock Male Plug, 20A 250V, 2-Pole 3-Wire, Screwless Terminal
- MPN: HBL2321ST
- UPC: 783585681962
- PPN: HBL-HBL2321ST
- UNSPSC: 39121402
CAD
$37.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Male Plug, 20A 250V, 2-Pole 3-Wire Grounding, L6-20P, Screwless Terminal, Black and White
Features
- Faster termination time
- No need for torque wrench
- Strong steel spring eliminates strand relaxation
- Funnel shaped wire entry for ease of termination.
- Superior cord grip design protects terminations from excess strain
- EdgeConnect™ Technology, Screwless Termination
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Poles
- 2
- Dielectric Voltage
- 3000 V minimum
- Termination Type
- Screwless
- Cord Diameter
- 0.360-0.930 in (9-24 mm)
- Terminal Accommodation
- #14 AWG - #8 AWG stranded copper wire
- Terminal Retainer Material
- Nylon
- Blade Material
- Copper Alloy
- Assembly Screws Material
- Zinc Plated Tri-drive
- Moisture Resistance
- IP20
- Country of Origin
- CN
Voltage250 V
Wires3
Operating Temperature-40°C to 75°C
Width2.400 in
Weight0.25 lbs
Housing MaterialNylon
Plunger MaterialNylon
Terminal Spring Clamp MaterialSpring Steel
Flammability RatingHB or better per UL94/CSA 22.2 No.0.17
ComplianceUL 498 Listed, CSA C22.2 No.42 Certified, Fed. Spec. W-C-596
SeriesEdgeConnect™ Twist-Lock® Series
