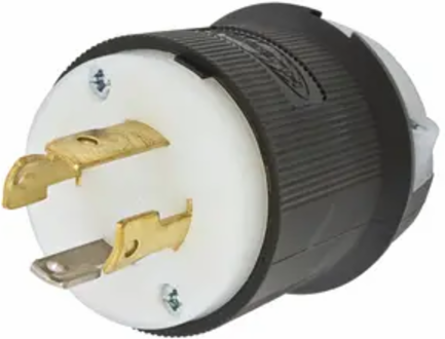

Hubbell Wiring Device-Kellems HBL2711 Locking Plug, 30A 125/250V, 3-Pole 4-Wire, L14-30P, Nylon
Hubbell Wiring Device-Kellems HBL2711 Locking Plug, 30A 125/250V, 3-Pole 4-Wire, L14-30P, Nylon
- MPN: HBL2711
- UPC: 783585039145
- PPN: HBL-HBL2711
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$61.34/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30P, Screw Terminal, Black and White.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 2.33 in x 2.33 in x 2.75 in
- Height
- 2.75 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Noir, blanc
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Plugs
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.25 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG PLUG, 30A 125/250V, L14-30P, B/W
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.350"-1.150" (9-29)
- Cord Diameter
- 0.350-1.150 in
- Material
- Nylon
- BOX SIZE
- 8.000x12.600x9.000 (in)
- Carton - Number of Sub Packs
- 30
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585039145
- Case Weight
- 11.000 lb.
- Lowest Level UOM
- Each
- Pallet - Number of Sub Packs
- 60
- Pallet - Total Units
- 1800
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Each - Width2.500 in
Horsepower - Maximum2(2)
Length2.33 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL14-30P
Number of Wires4-Wire
Size2.33 in x 2.33 in x 2.75 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating125/250 VAC
Voltage Rating Description125/250 VAC
Width2.33 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL14-30P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2711
Cable Range0.350 - 1.150 in
Material - Mounting HardwareCord Mounted
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.650 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585039144
Pallet - Pack DescriptionPallet
Pallet Height48.000 in
Pallet Weight1096.500 lb.
Certifications
- EU RoHS Indicator
- Yes
