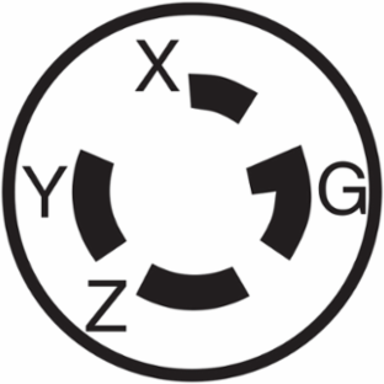

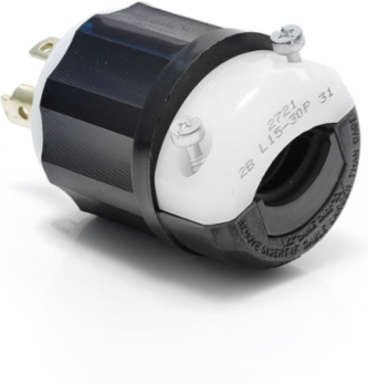

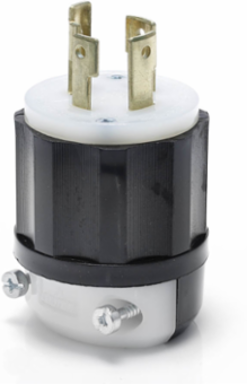

Leviton 2721 NEMA L15-30P Locking Plug, 30 Amp, 250 Volt, 3-Phase, Impact Modified Nylon
- MPN: 2721
- UPC: 078477808375
- PPN: LEV-2721
CAD
$35.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
30 Amp, 250 Volt 3-Phase, NEMA L15-30P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- Captive, quick drive assembly screws for faster assembly
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Phase | 3-Phase |
| Poles | 3 |
| Torque Range | 10-14 in-lbs |
| Temperature Rise | Max 30C after 250 cycles OL at 200% rated current |
| Current Interrupting | Certified at full rated current |
| Material | Impact Modified Nylon, Brass |
| Terminal Screws Material | Brass |
| Body Material | Impact Modified Nylon |
| Wire Module Material | Nylon |
| Assembly Screws Material | Steel, Zinc Plated |
| Flammability Rating | Rated HB or better per UL94 |
| Compliance | RoHS Compliant, UL Listed, CSA C22.2 No. 42 File LR-406, NOM 057, UL Fed Spec WC-596 File E13393 |
| Environment | Dry |
| Terminal ID Color Code | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | Mexico |
| Voltage | 250 VAC |
|---|---|
| Horsepower | 3 HP at rated voltage |
| Wires | 4 |
| Wire Gauge | 14-8 AWG |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Cord Range | 0.560 to 1.050 in. |
| Cord-Clamp Material | Nylon |
| Terminal Accommodation | 14-8 AWG |
| Back Cover Material | Thermoplastic |
| Blades/Contacts Material | Solid Brass |
| Clamp Insert Material | Nylon |
| NEMA | WD-6 |
| Operating Temperature | -40 C to 60 C |
| Grounding | Grounding |
| Color | Black-White |
| Brand | Black and White |
