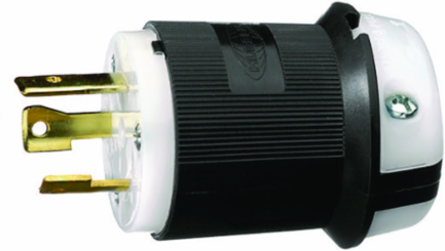

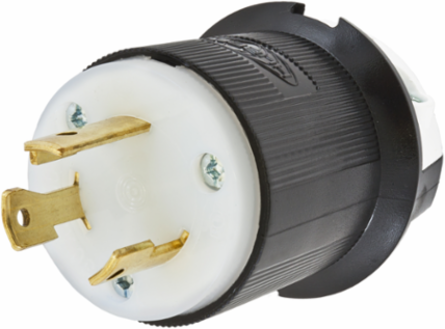

Hubbell Wiring Device-Kellems HBL2621 Twist-Lock Male Plug 30A 250V 2-Pole 3-Wire Grounding
Hubbell Wiring Device-Kellems HBL2621 Twist-Lock Male Plug 30A 250V 2-Pole 3-Wire Grounding
- MPN: HBL2621
- UPC: 783585038834
- PPN: HBL-HBL2621
- UNSPSC: 39121402
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$53.55/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
- Amperage
- 30 A
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Wire Size
- #16 AWG to #8 AWG
- Dielectric Strength
- Withstands 2000 V minimum
- Number of Wires
- 3-Wire
- Dimensions
- 2.26 in x 2.26 in x 2.75 in
- Terminal Type
- Screw Terminal
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
- Country of Origin
- US
Voltage250 VAC
Current Rating30 A
Cord Diameter0.360-0.930 in
Operating Temperature Range-40°C to 75°C
NEMA RatingL6-30P
GroundingYes
Weight0.25 lb
MaterialNylon
ColorNoir, blanc
