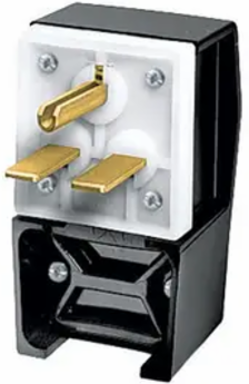

Hubbell Wiring Device-Kellems HBL9331 Heavy Duty Nylon Male Plug, 30A 250V, 2-Pole 3-Wire, 4-Position
- MPN: HBL9331
- UPC: 783585015248
- PPN: HBL-HBL9331
- UNSPSC: 39121402
CAD
$212.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 250V, 6-30P, Black, Single Pack.
Features
- Nylon
- 4-Position
- Heavy Duty
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL9331 AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Current / Amperage Rating | 30 A |
| Height | 1.88 in |
| Industry Standard(s) | UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#4 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Color | Noir |
| Number of Poles | 2-Pole |
| Size | 4.34 in x 2.75 in x 1.88 in |
| Type | Plug |
| Wattage | 7500 W |
| Voltage Rating Description | 250 V |
| Width | 2.75 in |
| Nema Rating | 6-30P |
| Number Of Wires | 3-Wire |
| Style | Grounding |
| Description - Invoice | PLUG, ANG, 2P3W, 30A 250V, 6-30P, BK |
| Harmonization Code | 8536699902 |
| MSDS Flag | No |
| Sub Class Code | A04A080 |
| Material | Thermoplastic/Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Pallet - GTIN - Package | 70783585015247 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Dimensions | 4.34 in x 2.75 in x 1.88 in |
| Horsepower - Maximum | 2 |
| Length | 4.34 in |
| Amperage Rating | 30 A |
| NEMA Rating | 6-30P |
| Number of Wires | 3-Wire |
| Standard | UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280 |
| Voltage Rating | 250 V |
| Wire Size | #12 AWG to #4 AWG |
| Weight | 0.55 lb. |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 9331 |
| Current Rating | 30 A |
| Series | Extra Heavy Duty Series |
| BOX SIZE | 5.400x11.600x9.200 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585015248 |
| Case Weight | 3.613 lb. |
| Pallet Height | 44.000 in |
| Pallet Weight | 850.000 lb. |
| NAICS Code | 335931A102 |
