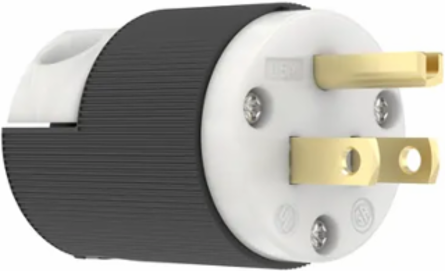

Hubbell Wiring Device-Kellems HBL5266C Insulgrip Heavy Duty Male Plug, 15A 125V, 2-Pole, 3-Wire, 1.52 x 1.52 x 1.96 Inch
- MPN: HBL5266C
- UPC: 783585173009
- PPN: HBL-HBL5266C
- UNSPSC: 39121402
CAD
$40.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Straight Blade Devices, Male Plug, Insulgrip-Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A125V, 5-15P, Black and White, Single Pack.
Features
- Ribbed nylon housing is impact and chemical resistant.
- VARI-SIZE adjustable cord clamp
- Fast lead assembly screws
- Beveled housing prevents snagging
Documentation & Downloads
Specifications
Additional
| Amperage | 15 A |
|---|---|
| Number of Poles | 2-Pole |
| Dielectric Voltage | 2000 V minimum |
| NEMA Rating | 5-15P |
| Dimensions | 1.52 in x 1.52 in x 1.96 in |
| Material | Polycarbonate, Nylon, Brass, Steel |
| Blade Size | 0.060 in (1.5 mm) |
| Terminal Clamp | Nickel plated steel |
| Industry Standards | CSA C22.2 No. 42; Fed. Spec. W-C596G; NEMA WD-6; UL 498 |
| IP Rating | IP20 |
| Country of Origin | US |
| Voltage | 125 VAC |
|---|---|
| Number of Wires | 3-Wire |
| Wire Size | #18 AWG to #10 AWG |
| Operating Temperature Range | -40 C to 75 C |
| Weight | 0.15 lb. |
| Cord Diameter | 0.230 - 0.720 in |
| Terminal Screws | #8-32 Brass |
| Assembly Screws | Nickel plated steel |
| Flammability Rating | UL 94 HB or better |
| Color | Black, White |
