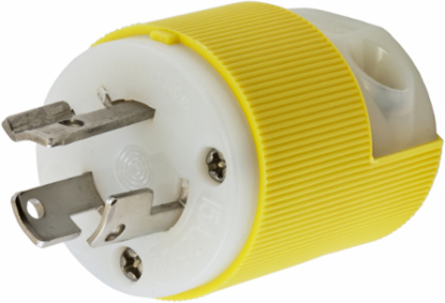

Hubbell Wiring Device-Kellems HBL45CM70C Twist-Lock Marine Grade Male Plug 15A 250V L6-15P Corrosion Resistant
- MPN: HBL45CM70C
- UPC: 783585160009
- PPN: HBL-HBL45CM70C
- UNSPSC: 39121402
CAD
$56.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15P, Screw Terminal, Corrosion resistant, Yellow.
Features
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip that’s impact and chemical resistant
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 1.53 in x 1.53 in x 1.97 in
- Horsepower - Maximum
- 1.5
- Length
- 1.53 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L6-15P
- Number of Wires
- 3-Wire
- Size
- 1.53 in x 1.53 in x 1.97 in
- Standard
- Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 1.53 in
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG PLUG, CM, 15A 250V L6-15P
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.230"-0.720"(5.8-18.3)
- Cord Diameter
- 0.230-0.720 in
- Material
- Nylon
- BOX SIZE
- 3.978x11.048x4.478 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585160009
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.97 in
Industry Standard(s)Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating15 A
ColorYellow
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesCorrosion Resistant
TypePlugs
Wire Size#18 AWG to #10 AWG
Weight0.15 lb.
Engineering Drawing 1 Display TextHBL45CM70C AutoCAD Drawing
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL6-15P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4570CY;45CM70C
Cable Range0.230 - 0.720 in
Material - Mounting HardwareCord Mounted
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight7.500 lb.
Lowest Level UOMEach
