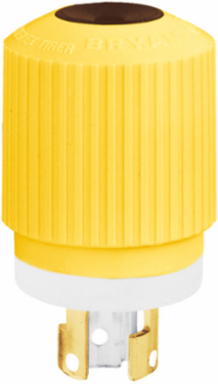

Hubbell 7568NPCR Marine Grade Male Plug 15A 125V/10A 250V 3-Pole 3-Wire Corrosion Resistant 1.53 Inch
- MPN: 7568NPCR
- UPC: 781786010550
- PPN: HBL-7568NPCR
- UNSPSC: 39121402
CAD
$56.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Marine Grade, Male Plug, 10A 250V, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Screw Terminal, Corrosion-Resistant, Yellow & White
Features
- Hand grip features wide-rib, non-slip design
- Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
- Captive, combination Slot/Phillips assembly screws
- Double wall construction for extra durability
- Neutral blade is nickel-plated for easy identification
- Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- Corrosion Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 2.18 in
- Amperage Rating
- 10 A
- Color
- Yellow
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Special Features
- Corrosion Resistant
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Connectivity
- Screw Terminals
- Nema Rating
- Non-NEMA
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A173
- Cord Diameter
- 0.300-0.655 in
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786010550
- Each - Pack Description
- Each
Dimensions1.53 in x 1.53 in x 2.18 in
Length1.53 in
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingNon-NEMA
Number of Wires3-Wire
Size1.53 in x 1.53 in x 2.18 in
TypePlugs
Wire Size#14 AWG to #10 AWG
Width1.53 in
Display SizeStandard Sized
Number Of Poles3-Pole
StyleInternal Cord Clamp
Description - InvoiceLKG PLUG, CM, 3P3W, 15A125/10A250V
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
Current Rating10 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
