Documentation & Downloads

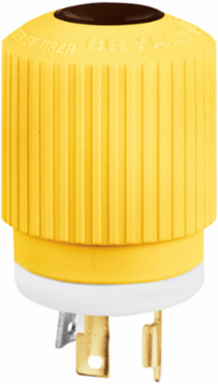

Bryant 70630NPCR Marine Grade Male Plug 30A 250V L6-30P 2-Pole 3-Wire Yellow Corrosion Resistant
- MPN: 70630NPCR
- UPC: 781786706309
- PPN: HBL-70630NPCR
- UNSPSC: 39121402
CAD
$83.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Marine Grade, Male Plug, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Yellow, Corrosion Resistant
Features
- Nickel-plated copper-alloy metallic components
- Molded of impact/chemical resistant high-visibility yellow nylon
- Stainless steel screws
- Triple Gripper® cord grip on plugs and connectors which feature three captive assembly screws to automatically tighten cord grip
- Individual wire pockets with clamp-type terminals
- Corrosion Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2.86 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L6-30P
- Number of Wires
- 3-Wire
- Size
- 2.13 in x 2.13 in x 2.86 in
- Type
- Plugs
- Wire Size
- #18 AWG to #8 AWG
- Width
- 2.13 in
- Display Size
- Standard Sized
- Number Of Poles
- 2-Pole
- Style
- Internal Cord Clamp
- Description - Invoice
- LKG PLUG, CM, 30A 250V, L6-30P, YL
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.35 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Dimensions2.13 in x 2.13 in x 2.86 in
Length2.13 in
Amperage Rating30 A
ColorYellow, White
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesCorrosion Resistant
Voltage Rating250 V
Voltage Rating Description250 V
ConnectivityScrew Terminals
Nema RatingL6-30P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Cord Diameter0.300-0.950 in
MaterialComposite
BOX SIZE5.300x14.600x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786706309
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
