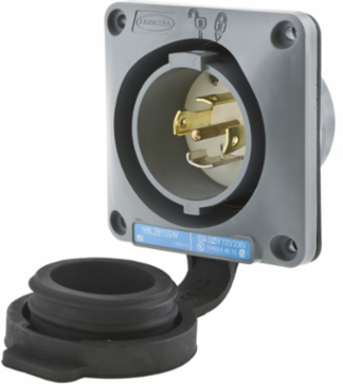

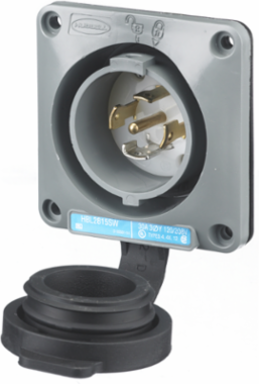

Hubbell Wiring Device-Kellems HBL2815SW Locking Flanged Inlet 30A 3-Phase Wye 120/208V AC, 4-Pole
- MPN: HBL2815SW
- UPC: 783585232126
- PPN: HBL-HBL2815SW
- UNSPSC: 39121406
CAD
$292.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-30P, Screw Terminal , Gray
Features
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 30 A
- Height
- 2.44 in
- Length
- 3.75 in
- Amperage Rating
- 30 A
- Color
- Gray, White
- Environmental Conditions
- Watertight
- NEMA Rating
- L21-30P
- Number of Wires
- 5-Wire
- Size
- 3.75 in x 3.75 in x 2.44 in
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Voltage Rating
- 3 Phase WYE 120/208 VAC
- Voltage Rating Description
- 3 Phase WYE 120/208 VAC
- Width
- 3.75 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 4-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG WT S/SHD FL-INLT,30A120/208V,L15-30P
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 4.900x9.700x9.900 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585232126
- Case Weight
- 3.500 lb.
- Lowest Level UOM
- Each
General Literature Asset 2 Display TextPulp & Paper Solutions
Country of OriginUnited States
Dimensions3.75 in x 3.75 in x 2.44 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles4-Pole
Phase3 Phase WYE
Special FeaturesShrouded Watertight Construction
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Weight0.70 lb.
ConnectivityBack Wired Screw Terminals
Nema RatingL21-30P
Number Of Wires5-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Cord Range0.350"-1.150" (9-29)
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
