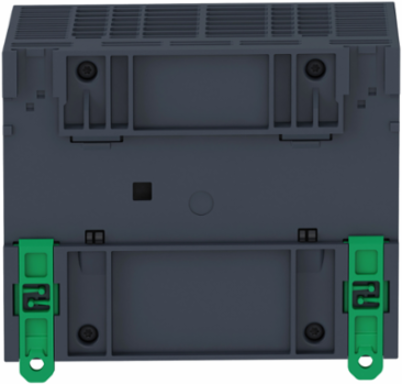

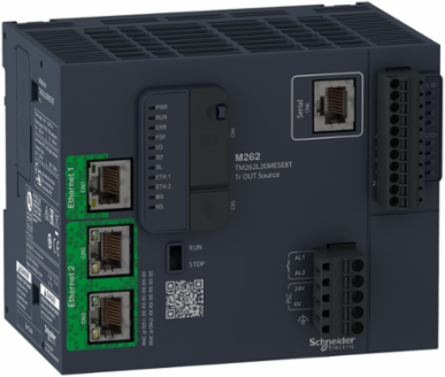

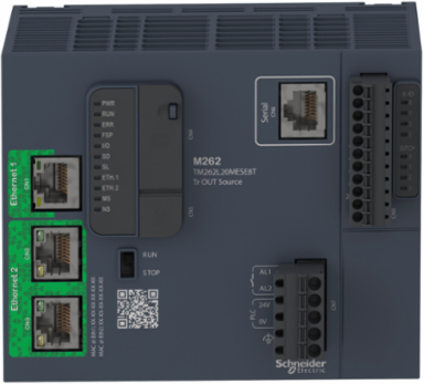

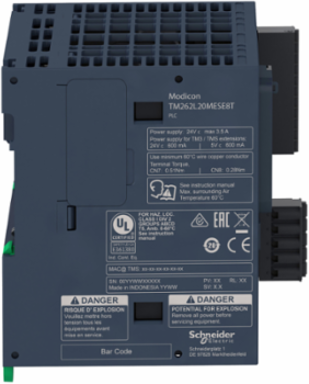

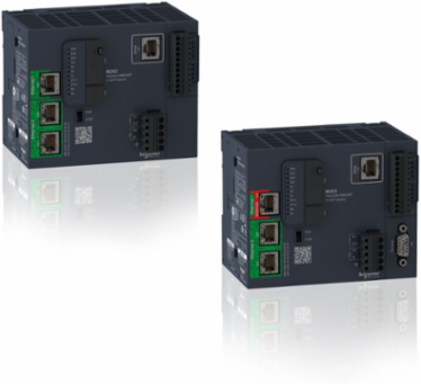

Schneider Electric TM262L20MESE8T Modicon M262 Logic Controller, 125mm Wide, 4 Fast Inputs/Outputs
- MPN: TM262L20MESE8T
- PPN: SCH-TM262L20MESE8T
CAD
$2577.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon M262 Logic Controller, 125mm Wide, 4 Fast Inputs/Outputs
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Philippines, Singapore, United States
Depth90 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus SL IO scanner, ASCII modem management, EtherNet/IP adapter, EtherNet/IP scannerModbus TCP client/server, Modbus TCP IO scanner, Modbus TCP NVL, Ethernet RSTP, Modbus SL client/server, Modbus SL modem management, Machine ExpertASCII manager
Communication ServiceMQTTs, OPC UA server (Encrypt), OPC UA client (Encrypt), HTTPs Methods (API), web server, web visu, TLS 1.2, TLS 1.3, SNTP, NTP client/server, FTP client/server, FTPs server, SQL client (remote access), DHCP client, DHCP server, DNS client, POP3s client, SMTP client, SNMP client/server
Complementary Attributes
- Integrated Connection Type
- Ethernet 1 RJ45 10/100BASE-T, Ethernet 2 2 RJ45 100/1000BASE-Tserial link RJ45 RS232/RS485, Smart Communication Bus, TM3 IO bus, USB type mini B
- Maximum Number Of Connected Devices
- EtherNet/IP: 64, Modbus TCP: 64Modbus TCP/EtherNet/IP: 128
- Maximum Leakage Current
- 10 µA output
- Maximum Tungsten Load
- <1.5 W<1.5 W
Maximum Cable Distance Between Devicesshielded cable <3 m fast input, shielded cable <3 m fast output, unshielded cable <50 m input, unshielded cable <50 m outputshielded cable <30 m RS485 linkshielded cable <15 m RS232
Maximum Current Per Output Common0.5 A Q0...Q3 fast output
Maximum Output Frequency300 kHz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Application Structure
- 8 event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks
- Configurable Filtering Time
- 0.001 ms fast input, 0.002 ms fast input, 0.005 ms fast input, 0.01 ms fast input, 0.05 ms fast input, 0., 0.5 ms fast input, 1 ms fast input, 4 ms fast input, 12 ms fast input
- Electrical Connection
- removable spring terminal block for inputs and outputs, removable spring terminal block for connecting the 24 V DC power supply
- Insulation
- between fast input and internal logic 550 V AC, non-insulated between inputs, between output and internal logic 550 V AC, non-insulated between outputs, between input and output 550 V AC, between supply and internal logic 550 V AC, non-insulated between supply and ground
- Memory Capacity
- 32 MB program RAM, 32 MB OS/website RAM192 MB system memory RAM
- Protection Type
- short-circuit and overload protection with automatic reset, reverse polarity protection, short-circuit protection
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
- Upstream Connectivity
- IIoT-ready machine to cloud, connected machine to plant
- Voltage State 0 Guaranteed
- <= 5 V DC, <= 5 V DC<= 5 V DC, <= 5 V DC
- Certificate Agency
- CE, cULus, cULus HazLoc Class I Division 2 CSA 22-2 No 213, RCM, EAC, Achilles, KC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1061848913, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0085801726
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 185 kg CO2 eq., 1184.6
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1904006EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Cycle Time
- 0.5 ms
- Execution Time For 1 Kinstruction
- 0.003 ms
- Immunity To Microbreaks
- 0.01 ms
- Positioning Functions
- libraries axes coordinated
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Logic/motion controller - Modicon M262
- Reset Time
- 200 ms automatic reset fast output
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-28 kV on air IEC 61000-4-2
- Shock Resistance
- 15 gn 11 ms
- Supply Voltage Limits
- 20.4-28.8 V DC
- Total Lifecycle Carbon Footprint
- 1 204 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 100 mm
- [Us] Rated Supply Voltage
- 24 V DC - 15...20 %
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]
- 4.9412
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 13446
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 4295.1
- Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.9496
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 23658
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 20650
- Water Pollution (M3) Operational Energy Use [B6]
- 48880
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Clock Drift<= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C<= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C
Data Storage Equipment<= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional)<= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional)
Electromagnetic Emissionconducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBµV/m30-230 kHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions230-1000 MHz IEC 55011
Local Signalling1 LED (green/red) for PWR, 1 LED (green/red) for RUN, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for stop forced, 1 LED (green/red) for I/O error (I/O)1 LED (green/orange) for SD card activity, 1 LED (green/orange) for SL activity, 1 LED (green/red) for ETH1 state, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for EIP MS, 1 LED (green/red) for EIP NS
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-43 V 0.1...80 MHz, 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Response Time<= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output<= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output
Vibration Resistance1 gn 8.4-200 Hz panel mounting3.5 mm 2-8.4 Hz symmetrical rail1 gn 8.4-200 Hz symmetrical rail, 3.5 mm 2-8.4 Hz panel mounting
Voltage State 1 Guaranteed>= 15 V DC, >= 15 V DC>= 15 V DC, >= 15 V DC
Maximum Number Of I/O Expansion Module7 TM3 IO module (remote I/O-Architecture), 7 TM3 IO module (local I/O-Architecture), 64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4245010145, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]19 kg CO2 eq., 18.588071256
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint1184.6
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Data Backed Up1 GB built-in flash memory backup of user programs
Overvoltage Protectionwith
Inrush Current40 A
Power Consumption In W82 W
Product Or Component Typelogic controller
Realtime Clockwith
Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
ReturnabilityYes
Software VersionEIME v5.8.1
Sustainable PackagingYes
Transmission Rate115 kbit/s 15-15 m RS485115 kbit/s 3-3 m RS232480 Mbit/s 3-3 m USB10/100 Mbit/s Ethernet110/100/1000 Mbit/s Ethernet2
Pep CodeENVPEP1904006EN
Pep Verification Date2021-10-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionFor logic control of multiple input and output arrangements (TM262L) and for motion control of up to 16 synchronized axes, embedding a safety control application capable of attaining SIL3 (TM262M) 100% of the time for 10 years.
Energy Consumption On Product Lifetime In Kwh2417.76
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal125 mm
Discrete I/O Number8
Package Weight(Lbs)823.0 g
Warranty (In Months)18
Air Pollution (M3) Operational Energy Use [B6]50984
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]1184.6
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]4416.6
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]20650
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]3008.4
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3008.4
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-50 °C vertical installation), -20-45 °C flat mounting), -20-45 °C flat mounting)-20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-45 °C flat mounting)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1904006EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2021-10-01
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint1203.7273373344
Environmental DisclosureENVPEP1904006EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1904006EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductLogic/motion controller - Modicon M262
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 0.5 A fast output Q0...Q3)
- Discrete Output Number
- 4 transistor fast output
- Discrete Output Voltage
- 24 V DC
- Maximum Output Frequency
- 300 kHz
Discrete Output Logicsource
Discrete Output Typetransistor
Maximum Current Per Output Common0.5 A Q0...Q3 fast output
Output Voltage Limits30 V DC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0.001 ms fast input, 0.002 ms fast input, 0.005 ms fast input, 0.01 ms fast input, 0.05 ms fast input, 0., 0.5 ms fast input, 1 ms fast input, 4 ms fast input, 12 ms fast input
Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
Input Attributes
- Discrete Input Current
- 7.5 mA fast input
- Discrete Input Number
- 4 , discrete input fast input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
Discrete Input Logicsink
Discrete Input Voltage24 V
Input Impedance2.81 kOhm input
