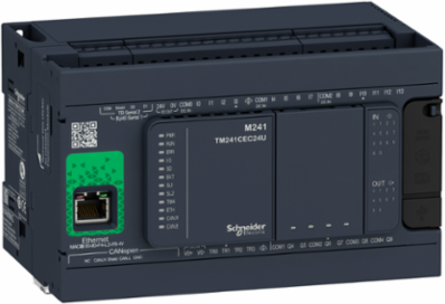

Schneider Electric TM241CEC24R Modicon M241 Logic Controller, 24 I/O, Relay, Ethernet, IP20

  • MPN: TM241CEC24R
  • PPN: SCH-TM241CEC24R
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $867.85

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon M241 Logic Controller, 24 I/O, Relay, Ethernet, IP20

    Features

    • Featuring a dedicated CANopen master port, this controller allows for the seamless integration of up to 63 slave devices, including variable speed drives and remote I/O modules. This high-speed communication bus significantly reduces the need for complex hard-wiring, lowering your labor costs and making it easier to scale or modify your automated production lines as your business grows.
    • Equipped with an RJ45 Ethernet port (supporting Modbus TCP and EtherNet/IP) and a Serial link, the TM241CEC24R provides instant connectivity for HMI interaction and remote data monitoring. This allows industrial engineers to perform real-time diagnostics and firmware updates over the network, ensuring maximum uptime without requiring a technician to be physically present at the machine.
    • Powered by a high-speed dual-core processor capable of executing instructions at 22ns, this logic controller is specifically designed for demanding applications that require rapid logic processing. The increased memory capacity (64 MB RAM / 128 MB Flash) ensures your complex PID loops and motion control sequences run with extreme precision and zero latency.
    • This controller features 24 built-in I/O (14 digital inputs and 10 relay outputs) but is easily expandable via Modicon TM3 modules. This "brick" style modularity allows you to customize your digital, analog, or functional safety inputs as your project scales, providing a future-proof solution that adapts to evolving manufacturing requirements.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Indonesia, Singapore, United States
    Depth95 mm

    Communications & Management Attributes

    Communication ServiceSNMP client/server, Modbus TCP slave device, Modbus TCP server, Modbus TCP client, IEC VAR ACCESS, FTP client/server, SQL client, DHCP client, Ethernet/IP adapter, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
    Communication Port Protocolnon isolated serial link Modbus master/slave

    Complementary Attributes

    Integrated Connection Typenon isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485USB port mini B USB 2.0, Ethernet RJ45CANopen J1939 male SUB-D 9
    Maximum Number Of Connections16 Ethernet/IP device8 Modbus server
    Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m outputshielded cable <3 m fast output
    Maximum Output Frequency1 kHz transistor output20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Application Structure4 cyclic master tasks, 8 external event tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task
    Clock Drift<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
    Data Storage Equipment<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
    Electromagnetic Emissionconducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15-0.5 MHz IEC 55011conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines)0.5-300 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
    Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4)1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity, 1 LED (green) for CANopen run, 1 LED (green) for CANopen error
    Protection Typeshort-circuit protection transistor output, short-circuit and overload protection with automatic reset transistor output, reverse polarity protection transistor outputwithout protection relay output
    Resistance To Fast Transients2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
    Vibration Resistance3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
    Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
    Carbon Footprint Of The Distribution Phase [A4]4.208020905484937, 4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.021858701805687573
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 217 kg CO2 eq., 2217.2281293821015
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Configurable Filtering Time1 s fast input
    Execution Time For 1 Kinstruction0.3 ms event and periodic task0.7 ms other instruction
    MarkingCE
    Network Frequency50/60 Hz
    Positioning FunctionsPTO 4 100 kHz)
    Product Or Component Typelogic controller
    Realtime Clockwith
    Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
    Response Time50 µs turn-on, I0...I13 input
    Sensor Power Supply24-24 V DC 400 mA supplied by the controller
    Software Versionv6.2.2
    Supply Voltage Limits85-264 V
    Total Lifecycle Carbon Footprint2 278 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh2207.52
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
    Height Nominal90 mm
    [Us] Rated Supply Voltage100...240 V AC
    Maximum Number Of I/O Expansion Module7 (local I/O-Architecture)14 (remote I/O-Architecture)
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109160
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Canopen Feature ProfileDR 303-1, DS 301 V4.02
    Control Signal TypeA/B 100 kHz fast input (HSC mode)pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
    Electrical Connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
    Insulationbetween supply and internal logic 500 V AC, non-insulated between supply and ground
    Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s 3-3 m USB10/100 Mbit/s Ethernet, 1000 kbit/s 20-20 m CANopen800 kbit/s 40-40 m CANopen500 kbit/s 100-100 m CANopen250 kbit/s 250-250 m CANopen125 kbit/s 500-500 m CANopen50 kbit/s 1000-1000 m CANopen20 kbit/s 2500-2500 m CANopen
    Voltage State 0 Guaranteed<= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
    Certificate AgencyRCM, cULus, CE, UKCA, DNV-GL, ABS, LR
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.9909573660908844, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]54 kg CO2 eq., 54.31102945774266
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1307080EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1845
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Data Backed Up128 MB built-in flash memory backup of user programs
    Immunity To Microbreaks10 ms
    Memory Capacity64 MB system memory RAM
    Port Ethernet10BASE-T/100BASE-TX - 1 copper cable
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon M241
    Reset Time10 ms automatic reset output12 s automatic reset fast output
    Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
    ReturnabilityYes
    Shock Resistance15 gn 11 ms
    Supplyserial 1)serial link supply 5 V, <200 mA
    Sustainable PackagingYes
    Web Servicesweb server
    Pep CodeENVPEP1307080EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
    Recyclability Potential In %3
    Width Nominal150 mm
    Discrete I/O Number24
    Number Of Server Device(S)63 CANopen
    Package Weight(Lbs)780.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
    Relative Humidity10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1307080EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Storage Altitude0-3000 m
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint2277.7599958132255
    Environmental DisclosureENVPEP1307080EN
    Ip Degree Of ProtectionIP20 with protective cover in place
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1307080EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typelogic controller
    Range Of ProductModicon M241

    ETIM

    ETIM 8EC000236
    ETIM 9EC000236

    Output Attributes

    Discrete Output Current2 A relay output Q4...Q9), 0.1 A fast output (PTO mode) TR0...TR3)0.5 A transistor output TR0...TR3)
    Discrete Output Logicpositive logic (source)
    Discrete Output Voltage5...125 V DC relay output5...250 V AC relay output24 V DC transistor output
    Output Voltage Limits125 V DC relay output30 V DC transistor output277 V AC relay output
    Discrete Output Typetransistor, relay
    Discrete Output Number6 relay4 transistor 4 fast output
    Maximum Output Frequency1 kHz transistor output20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)

    Surge Protection And Filtering Attributes

    Surge Withstand1 kV relay output differential mode IEC 61000-4-52 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-51 kV shielded cable common mode IEC 61000-4-5, 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
    Configurable Filtering Time1 s fast input

    Input Attributes

    Counting Input Number4 fast input (HSC mode) 200 kHz, 14 standard input 1 kHz
    Discrete Input Logicsink or source
    Discrete Input Voltage24 V
    Input Impedance4.7 kOhm input
    Discrete Input Current5 mA input
    Discrete Input Number14 , discrete input 8 fast input IEC 61131-2 Type 1
    Discrete Input Voltage TypeDC

    Batteries & Runtime Attributes

    Battery TypeBR2032 lithium non-rechargeable 4 year(s)
    Modicon M241 Logic Controller, 24 I/O, Relay, Ethernet, IP20
