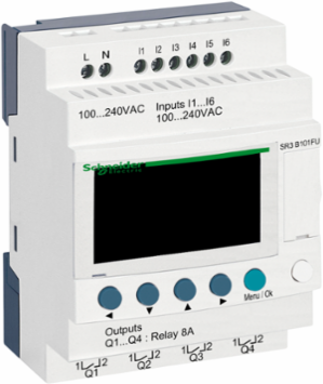

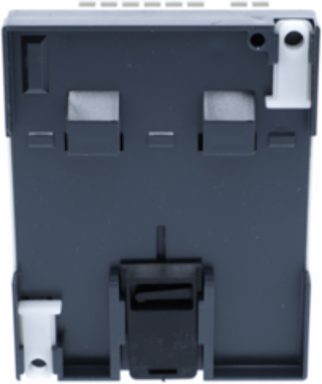

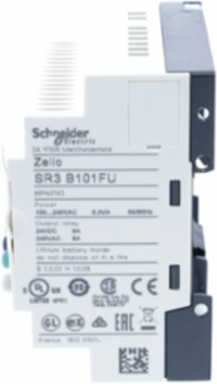

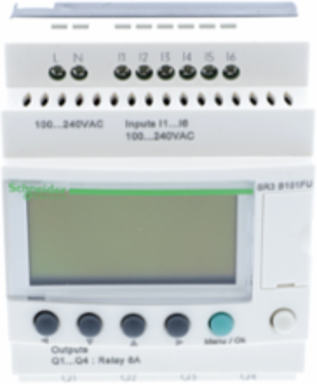

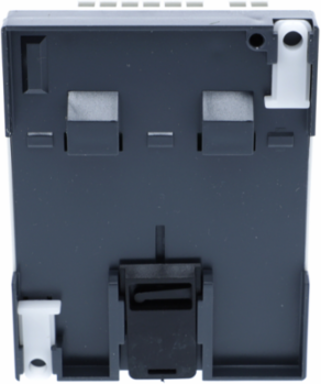

Schneider Electric SR3B101FU Modular Smart Relay, 10 I/O, 100-240V AC, Clock with Display

  • MPN: SR3B101FU
  • PPN: SCH-SR3B101FU
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $274.55

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

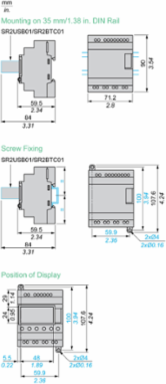

    This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 10 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

    Features

    • This Zelio Logic modular smart relay features a 10 I/O configuration containing 6 discrete AC inputs and 4 robust relay outputs. This specialized density provides the exact control footprint required to automate standalone machinery, HVAC systems, and lighting networks without paying for the wasted capacity of a full-scale programmable logic controller (PLC).
    • Engineered to run on a wide 100V to 240V AC supply voltage range (85V to 264V AC absolute limits) at 50/60 Hz, this smart relay integrates into industrial, commercial, and residential electrical panels without requiring an external step-down power supply. This direct-line power compatibility lowers upfront component costs, saves valuable DIN rail space, and simplifies control cabinet wiring layout.
    • This versatile logic controller supports both intuitive Ladder Logic diagramming (up to 240 lines) and highly customizable Function Block Diagram (FBD) programming (up to 500 lines). It lets industrial electricians and control engineers develop automated sequences using their preferred programming style, allowing for seamless implementation of pre-configured application functions like timers, counters, and clocks.
    • Equipped with an integrated, long-life backup battery that provides a 10-year clock and memory backup at 25 C, this smart relay retains your control schemes and calendar settings during extended blackouts. Your pre-programmed schedules and internal logic are fully verified on each power-up, ensuring your automated processes restart instantly and accurately without requiring manual reprogramming.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, United States

    Complementary Attributes

    Maximum Altitude Transport
    3048 m
    Maximum Supply Current80 mA 100 V without extension)30 mA 240 V without extension)40 mA 240 V with extensions)80 mA 100 V with extensions)

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Current State 0 Guaranteed
    <= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input)
    Environmental Characteristic
    EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
    Response Time
    50...255 ms FBD from state 1 to state 0)discrete input, 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input50...255 ms FBD from state 0 to state 1)discrete input10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
    Voltage State 0 Guaranteed
    <= 40 V discrete input, <= 40 V discrete input<= 40 V discrete input, <= 40 V discrete input
    Certificate Agency
    GOST, C-tick, CSA, UL, GL
    Carbon Footprint Of The Distribution Phase [A4]
    0.48044808943444434, 0.5 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.04547834838620911
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    164 kg CO2 eq., 164.00340084141706
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Device Type
    PLC System - PLC CPU
    Traceability
    Yes
    Average Life Duration
    20 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Dangerous Goods Code
    LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Checks
    program memory on each power up
    Clock Drift
    12 min/year 0-55 °C6 s/month 25-25 °C
    Cycle Time
    6-90 ms
    Immunity To Microbreaks
    10 ms
    Local Display
    with
    Operating Rate In Hz
    0.1 Hz at Ie)relay output10 Hz no load)relay output
    Power Consumption In Va
    12 VA with extensions7 VA without extension
    Product Or Component Type
    modular smart relay
    Range Of Product
    Zelio Logic
    Software Version
    v6.2.2
    Supply Voltage Limits
    85-264 V
    Tightening Torque
    0.5 N.m
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    France, FR
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Uimp] Rated Impulse Withstand Voltage
    4 kV EN/IEC 60947-1 and EN/IEC 60664-1
    Disturbance Radiated/Conducted
    class B EN 55022-11 group 1
    Package Weight(Lbs)
    242.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Current State 1 Guaranteed>= 0.17 mA discrete input), >= 0.17 mA discrete input)>= 0.17 mA discrete input), >= 0.17 mA discrete input)
    Number Or Control Scheme Lines0-500 FBD, 0-240 ladder
    Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
    Voltage State 1 Guaranteed>= 79 V discrete input, >= 79 V discrete input>= 79 V discrete input, >= 79 V discrete input
    Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solidscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6060504051801834, 0.6 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]30 kg CO2 eq., 29.64660681901272
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI0604006EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1846
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Clockwith
    Contacts Type And CompositionNO relay output
    Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
    Isolation Voltage1780 V
    Mechanical Durability10000000 cycles relay output
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection Typeagainst inversion of terminals (control instructions not executed)
    ReturnabilityYes
    Supply Frequency50/60 Hz
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint195 kg CO2 eq.
    Pep CodeENVPEP0604006EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Us] Rated Supply Voltage100...240 V
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490080

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    194.7819845034306
    Environmental Disclosure
    ENVPEP0604006EN
    Ip Degree Of Protection
    IP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP0604006EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI0604006EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % without condensation or dripping water
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    modular smart relay
    Range Of ProductZelio Logic

    ETIM

    ETIM 8
    EC001417
    ETIM 9EC001417

    Output Attributes

    Number Of Outputs
    4 relay
    Output Voltage Limits
    5...30 V DC relay output)24...250 V AC
    Output Thermal Current8 A for all 4 outputs relay output

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Frequency
    57...63 Hz, 47...53 Hz
    Discrete Input Number
    6
    Input Impedance
    350 kOhm discrete input
    Discrete Input Current0.6 mA
    Discrete Input Voltage100...240 V AC
