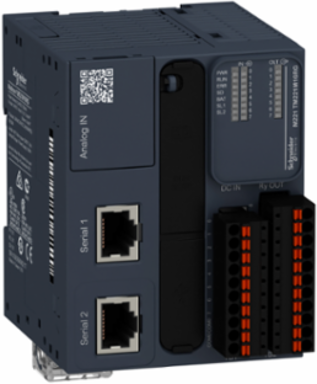

Schneider Electric TM221M16RG Modicon M221 Logic Controller, 16 I/O, Relay Outputs, 24V DC, IP20
Schneider Electric TM221M16RG Modicon M221 Logic Controller, 16 I/O, Relay Outputs, 24V DC, IP20
- MPN: TM221M16RG
- PPN: SCH-TM221M16RG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$453.72/ EA
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay spring outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 24V DC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Specifications
Complementary
- Discrete Input Logic
- sink or source (positive/negative)
- Exct Time For Event Task
- 60 µs response time
- Electrical Connection
- terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable spring terminal block, 10 for inputs || removable spring terminal block, 11 for outputs
- Height
- 90 mm
- Maximum Power Consumption In W
- 22.5 W 24 V with max number of I/O expansion module) || 3.6 W 24 V without I/O expansion module)
- Discrete Input Voltage Type
- DC
- Maximum Current Per Output Common
- 7 A
- Clock Drift
- <= 30 s/month 25-25 °C
- Communication Port Protocol
- USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
- Marking
- CE
- Discrete I/O Number
- 16
- Regulation Loop
- adjustable PID regulator up to 14 simultaneous loops
- Power Supply Output Current
- 0.52-0.52 A 5 V expansion bus || 0.46-0.46 A 24 V expansion bus
- Application Structure
- 8 interrupt tasks || 1 cyclic auxiliary task || 1 configurable freewheeling/cyclic master task
- Configurable Filtering Time
- 0 ms input || 3 ms input || 12 ms input
- Maximum Size Of Object Areas
- 8000 %MW memory words || 255 %TM timers || 255 %C counters || 512 %KW constant words || 512 %M memory bits
- Conversion Time
- 1 ms per channel + 1 controller cycle time analog input
- Control Signal Type
- A/B || pulse/direction || single phase
- Integrated Connection Type
- USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485
- Mechanical Durability
- 20000000 cycles relay output
- Absolute Accuracy Error
- +/- 1 % of full scale analog input
- Local Signalling
- PWR 1 LED green) || RUN 1 LED green) || module error (ERR) 1 LED red) || SD card access (SD) 1 LED green) || BAT 1 LED red) || SL1 1 LED green) || SL2 1 LED green) || I/O state 1 LED per channel green)
- Discrete Input Current
- 7 mA discrete input || 5 mA fast input
- Analogue Input Resolution
- 10 bits
- Lsb Value
- 10 mV
- Depth
- 70 mm
- Data Storage Equipment
- 2 GB SD card optional)
- Supply
- serial 1)serial link supply 5 V, <200 mA
- Permitted Overload On Inputs
- +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Data Backed Up256 kB built-in flash memory backup of application and data
Input Impedance100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
Maximum Cable Distance Between Devicesshielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input
Discrete Input Voltage24 V
Inrush Current35 A
Communication ServiceModbus slave || Modbus master
Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
Battery TypeBR2032 or CR2032X lithium non-rechargeable
Protection Typewithout protection 5 A
Backup Time1 year 25 °C by interruption of power supply)
Reset Time1 s
Maximum Number Of I/O Expansion Module7 local || 14 remote
Net Weight0.264 kg
Voltage State 0 Guaranteed<= 5 V input
Output Voltage Limits125 V DC || 277 V AC
Memory Capacity256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Voltage State 1 Guaranteed>= 15 V input
Supply Voltage Limits20.4-28.8 V
Execution Time Per Instruction0.2 µs Boolean
Electrical Durability100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive || 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive || 100000 cycles DC-12, 24 V, 48 W, resistive || 300000 cycles DC-12, 24 V, 16 W, resistive || 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) || 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Response Time35 µs turn-off, I2...I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input
Execution Time For 1 Kinstruction0.3 ms event and periodic task || 0.7 ms other instruction
Realtime Clockwith
Width70 mm
Minimum Load1 mA 5 V DC relay output
Insulationbetween input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || between output groups 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs
Counting Input Number4 fast input (HSC mode) 100 kHz 32 bits
Switching Frequency20 switching operations/minute with maximum load
Environment
- Product Certifications
- RCM || LR || EAC || cULus || DNV-GL || ABS || CSA || CE || UKCA || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
- Immunity To Microbreaks
- 10 ms
- Pollution Degree
- <= 2
- Shock Resistance
- 98 m/s² 11 ms
- Vibration Resistance
- 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
- Environmental Characteristic
- ordinary and hazardous location
- Ip Degree Of Protection
- IP20 with protective cover in place
- Surge Withstand
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV power lines (DC) common mode IEC 61000-4-5
- Operating Altitude
- 0...2000 m
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
Storage Altitude0-3000 m
Ambient Air Temperature For Operation-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Electromagnetic Emissionconducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Specifications
- Discrete Output Type
- relay normally open
- Discrete Output Number
- 8 relay
- Discrete Output Current
- 2 A
- Analogue Input Number
- 2 0...10 V
- Discrete Input Number
- 8 , discrete input IEC 61131-2 Type 1
Range Of ProductModicon M221
Product Or Component Typelogic controller
Discrete Output Voltage5...125 V DC || 5...250 V AC
[Us] Rated Supply Voltage24 V DC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403012EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1403012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
