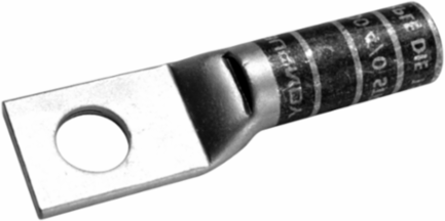

Burndy YAZ25TC516 Long Length Barrel Copper Terminal 1/0 AWG 600V-35kV 5/16 Inch Stud

MPN: YAZ25TC516
UPC: 781810239858
PPN: BUR-25020373

$31.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Tubing Hylug (One Hole Code), 1 Hole with Inspection Window, 1/0 AWG Code,100 Navy, 600V-35kV, 5/16" stud, Long, Compression, 0.33 in BCD, Pink

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	1-3/8 in
Dimension - Bolt Size fraction	5/16
Dimension - Hole Size mm	8
Dimension - Length Overall inch	2.46
Dimension - Outside Diameter inch	0.51
Dimension - Strip Length inch	1-7/16
Physical Attribute - Tongue Angle	Straight

Dimension - B Length inch	1.38
Dimension - Hole Size inch	0.33
Dimension - L Length Overall mm	62
Dimension - N inch	0.34
Dimension - Pad Width inch	0.75
Dimension - Z inch	0.36

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Str Navy Size	100 Navy
Conductor - Material	Copper

Conductor - Copper Str Size	1/0 AWG

General

Color Code	Pink
Die Index	12;348
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	1
Plated	Y
Trade Name	HYLUG™
UPC	781810239858

Connector Type	Terminal
Feature - Barrel Style	Skived
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Type	Long Barrel, Skive, Tin Plated
UPC 12 Digit	7818102398588
