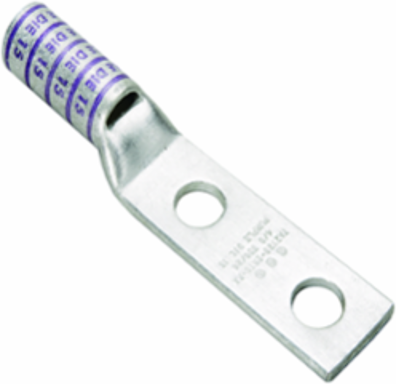

Burndy YAZ4C2N HYLUGTM Long Length Barrel Compression Lug, 4 AWG, 1/2 Inch Stud, Tin Plated
- MPN: YAZ4C2N
- UPC: 781810208540
- PPN: BUR-25016803
CAD
$36.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, 2 Hole w/ Inspection Window, 4 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/8 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 113 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 0.83 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.12 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch4.45 in
Dimension - Outside Diameter inch0.34 in
Dimension - Strip Length inch1-3/16
Dimension - Z inch0.64 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 40 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size4 AWG
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102085400
Color CodeGray
Die Index8;346
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810208540
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
