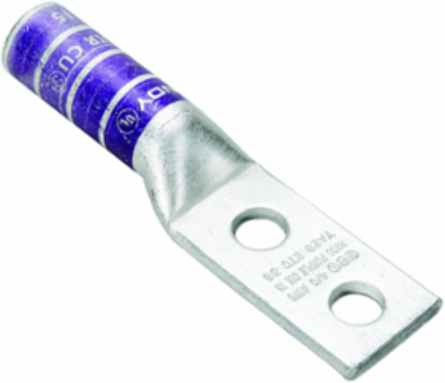

Burndy YA4C2NU HYLUGTM Non-Insulated Copper Terminal, 4 AWG, Tin Plated, Long Barrel, 35 kV
- MPN: YA4C2NU
- UPC: 781810018095
- PPN: BUR-502173
CAD
$32.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing Hylug (Undrilled), Blank Tongue, #4 AWG Code, 600V-35kV, Long, Compression, Gray
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/8 in
- Dimension - D inch
- 3.00 in
- Dimension - Length Overall inch
- 4.45 in
- Dimension - Outside Diameter inch
- 0.34 in
- Dimension - Strip Length inch
- 1-3/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.12 in
Dimension - L Length Overall mm113 mm
Dimension - N inch0.61 in
Dimension - Pad Width inch0.83 in
Dimension - Stud Size inch#10
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Standards - Industry Standards Met
- UL468A-468B
- UL Listed
- Yes
Industry Standard(s)UL468A-468B
Standards - RoHS Compliance StatusCM
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy
- Conductor - Copper Str Size Range
- 4 AWG
Conductor - Copper Str Navy Size40 (19) Navy
Conductor - Copper Str Size4 AWG
Conductor - MaterialCopper
General
- Color Code
- Gray
- Die Index
- 8;346
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 0
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810018095
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Temperature Rating194
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100180955
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
