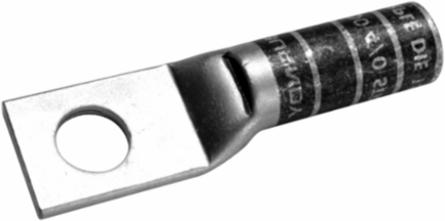

Burndy YAZV28TC58FX Long Length Barrel Terminal, 4/0 AWG, 3.51 Inch Overall Length, Purple
- MPN: YAZV28TC58FX
- UPC: 781810493144
- PPN: BUR-10106729
CAD
$47.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1 Hole Cu Compr Terminal, Flex, Long Brrl , W/ Insp Window, 4/0 (550/#24) DLO, 4/0 AWG, 3/8" stud, Purple, 15 Index
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-5/8 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.66 in |
| Dimension - Hole Size inch | 0.69 in |
| Dimension - L Length Overall mm | 89 mm |
| Dimension - N inch | 0.66 in |
| Dimension - Pad Width inch | 1.14 in |
| Dimension - Z inch | 0.67 in |
| Dimension - B Length inch | 1.62 in |
|---|---|
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - Hole Size mm | 18 mm |
| Dimension - Length Overall inch | 3.51 in |
| Dimension - Outside Diameter inch | 0.77 in |
| Dimension - Strip Length inch | 1-11/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 4/0 AWG |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - CopperWeld Str Size Range | 4/0 E AWG-4/0 V AWG |
| Conductor - Copper DLO Size Range | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 4/0 AWG |
| Conductor - Copper Flex H Size Range | 4/0 AWG |
| Conductor - Copper Flex I Size Range | 4/0 AWG |
| Conductor - Copper Flex K Size Range | 4/0 AWG |
| Conductor - Copper Flex M Size Range | 4/0 AWG |
| Conductor - CopperWeld Str Size | 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG |
| Conductor - Material | Copper |
General
| Color Code | Purple |
|---|---|
| Die Index | 15 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin - Electro Plated |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818104931444 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810493144 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
