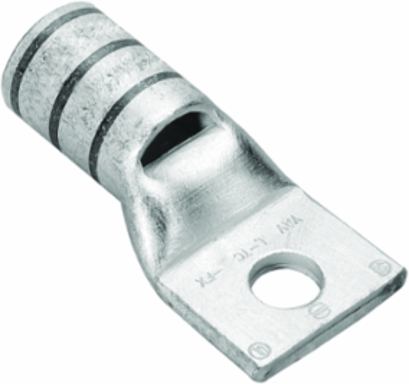

Burndy YAV28LTC58FX Non-insulated Tin Plated Terminal, 4/0 AWG, 5/8 Inch Stud, 35 kV Voltage
- MPN: YAV28LTC58FX
- UPC: 781810022634
- PPN: BUR-518511
CAD
$38.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 4/0 Weld, 4/0(550/#24)DLO Flex, 4/0 AWG Code, 200 Navy, 600 V-35 kV, 5/8" Stud, Std bbl.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.66 in |
| Dimension - Hole Size inch | 0.69 in |
| Dimension - L Length Overall mm | 74 mm |
| Dimension - N inch | 0.66 in |
| Dimension - Pad Width inch | 1.14 in |
| Dimension - Stud Size inch | 5/8 |
| Dimension - Z inch | 0.67 in |
| Dimension - B Length inch | 1.03 in |
|---|---|
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - Hole Size mm | 18 mm |
| Dimension - Length Overall inch | 2.92 in |
| Dimension - Outside Diameter inch | 0.77 in |
| Dimension - Strip Length inch | 1-1/16 |
| Dimension - Thread Size | 5/8 in |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 4/0 AWG |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Conductor - Copper Str Navy Size | 200 (61) Navy |
| Conductor - CopperWeld Str Size | 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG |
| Conductor - Copper Flex G Size | 4/0 AWG |
|---|---|
| Conductor - Copper Flex I Size | 4/0 AWG |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - Material | Copper |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810022634 |
| Color Code | Purple |
|---|---|
| Die Index | 15 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100226344 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
