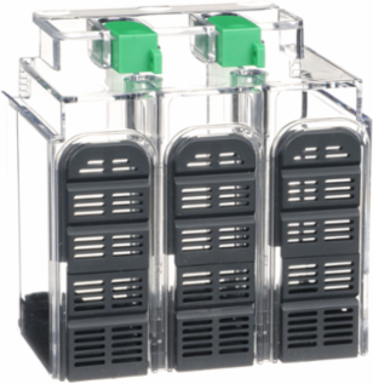

Schneider Electric LV426912 Long terminal shield, ComPacT NSXm, upstream and downstream mounting, IP40, 3 poles

Long terminal shield, ComPacT NSXm, upstream and downstream mounting, IP40, 3 poles
  • MPN: LV426912
  • PPN: SCH-LV426912

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$379.22/ EA

Description

It is a long terminal shield for 3 poles Compact NSXm and PowerPact B devices. It is designed for protection against direct contact with power circuit The long terminal shield is used for connection with cables or insulated bares. It can be mounted upstream and downstream the circuit breaker. This part provides IP 40 degree of protection and IK 07 mechanical impact protection. It can be mounted after the product installation and can be removed and put in place even if there are auxiliary wires.

Specifications

Offer Sustainability

Rohs Exemption Information
Yes
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)

Complementary

Connection Pitch
35 mm
Poles Description
3P
Location Of Connection
upstream || downstream
Ip Degree Of ProtectionIP40 IEC 60529
Quantity Per Setset of 1
Accessory / Separate Part Typeinsulation accessories

Specifications

Range Compatibility
ComPact ComPact NSXm || PowerPact PowerPact B
Product Or Component Typelong terminal shield
