Louisville Ladder L-3022-24PT Louisville Ladder 24-Foot Fiberglass Extension Ladder, Type IA, 300-pound Load Capacity, L-3022-24PT
Louisville Ladder L-3022-24PT Louisville Ladder 24-Foot Fiberglass Extension Ladder, Type IA, 300-pound Load Capacity, L-3022-24PT
- MPN: L-3022-24PT
- UPC: 728865101754
- PPN: LOU-L-3022-24PT
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$634.82/ EA
Description

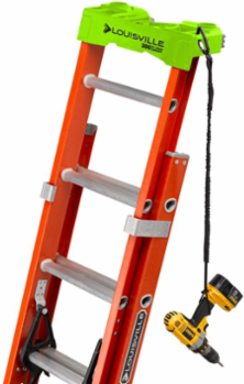

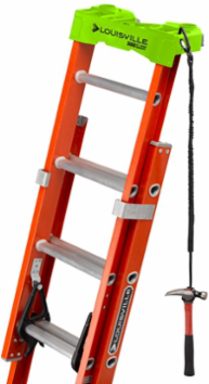

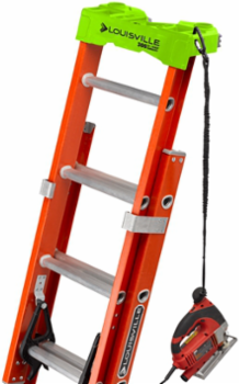

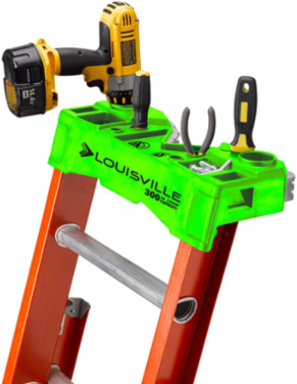

This Louisville 24 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes our patented ProTop specially designed to increase productivity. This innovative ProTop features a corner grip, pole grip, integrated bumper, and work tray; all compact and accessible in a spacious design. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, QuickLatch rung lock for better secure operation, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville L-3022-24PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features
- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

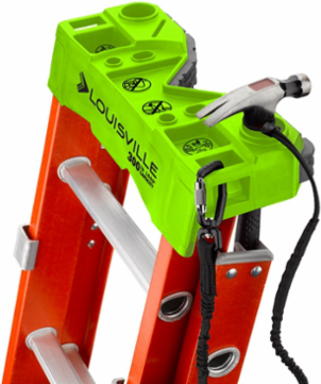

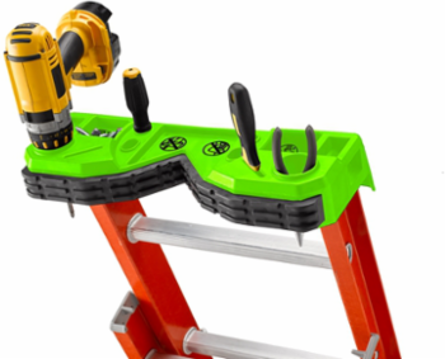

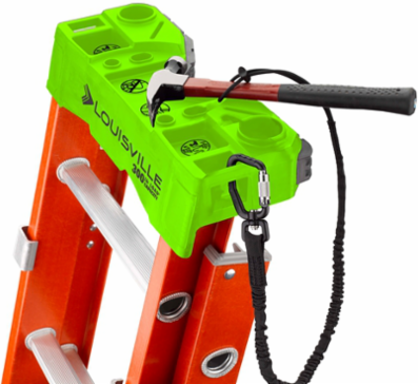

- ProTop With Multiple Tool Slots And Magnet

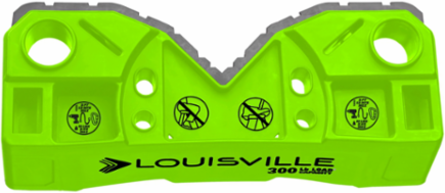

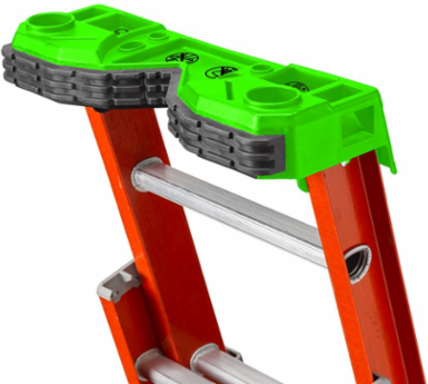

- V-Shape ProTop Allows The Ladder To Lean Against Walls
- Buildings And Poles
- Patented Quicklatch Runglock System
- Steel Swivel Safety Shoe With Metal Shield
- Mar-Resistant Rail End Caps
- Outside Slide Guides
- ANSI Certified
- OSHA Certified
Specifications
Specifications
- Style
- Standard
- Load Capacity (lbs)
- 300
- Number of Steps
- 24
- Step Depth
- 1.5
- Weight
- 51
- Closed Volume (cu. ft.)
- 9.857
- Closed Depth
- 6.375
- Section Length (ft)
- 12
- Max. Extended Length (ft)
- 21
- Inside Width Base (in)
- 14.645
- Outside Width Base (in)
- 17.045
Duty RatingType IA
Size24
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)29’
Closed Height150
Closed Width (in)17.812
Total Length (ft)24
Rail Depth (in)3.25
Inside Width Fly (in)13.688
Outside Width Fly (in)16.088
