Louisville Ladder FE3228 28-Foot Fiberglass Extension Ladder, Type IA, 300 lbs Load Capacity
- MPN: FE3228
- UPC: 728865200181
- PPN: LOU-FE3228
CAD
$759.96
/ EA
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Features

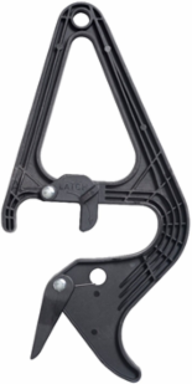

- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
- Patented Quicklatch Runglock System

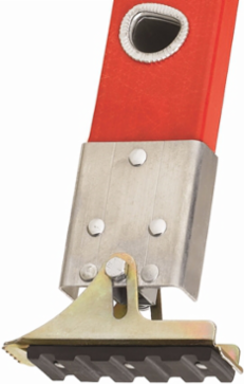

- Steel Swivel Safety Shoe With Metal Shield

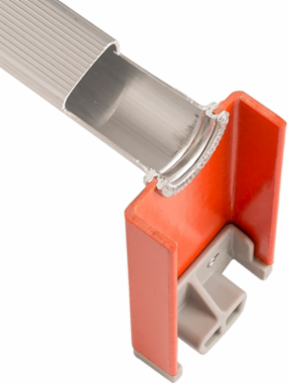

- Direct Rung-Rail Connection
- Mar-Resistant Rail End Caps
- Outside Slide Guides
- D-Shaped Rungs
- ANSI Certified
- OSHA Certified
Documentation & Downloads
Specifications
Key Specifications
| Style | Standard |
|---|---|
| Load Capacity (lbs) | 300 |
| Number of Steps | 28 |
| Step Depth | 1.5 |
| Weight | 58 |
| Closed Volume (cu. ft.) | 11.178 |
| Closed Depth | 6.25 |
| Section Length (ft) | 14 |
| Max. Extended Length (ft) | 25 |
| Inside Width Base (in) | 14.645 |
| Outside Width Base (in) | 17.063 |
| Duty Rating | Type IA |
|---|---|
| Size | 28 |
| Rung Type | D-rung |
| Material | Fiberglass |
| Maximum Standing Height (in) | 21.166 |
| Closed Height | 173.5 |
| Closed Width (in) | 17.812 |
| Total Length (ft) | 28 |
| Rail Depth (in) | 3.25 |
| Inside Width Fly (in) | 13.688 |
| Outside Width Fly (in) | 16.088 |
