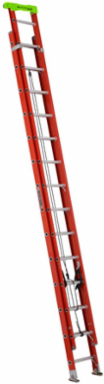

Louisville Ladder L-3022-28PT 28 Foot Fiberglass Extension Ladder, Type IA, 300 lb Load Capacity
- MPN: L-3022-28PT
- UPC: 728865101877
- PPN: LOU-L-3022-28PT
CAD
$744.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

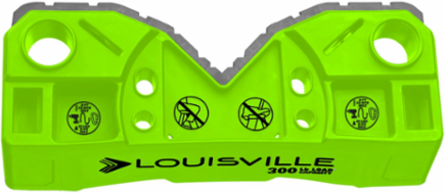

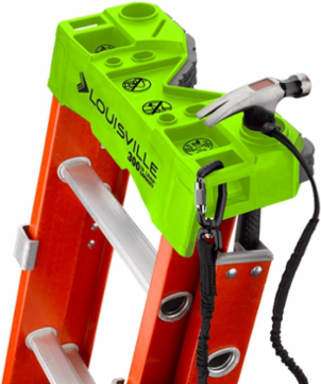

This Louisville 28 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes our patented ProTop specially designed to increase productivity. This innovative ProTop features a corner grip, pole grip, integrated bumper, and work tray; all compact and accessible in a spacious design. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, QuickLatch rung lock for better secure operation, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville L-3022-28PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features
- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

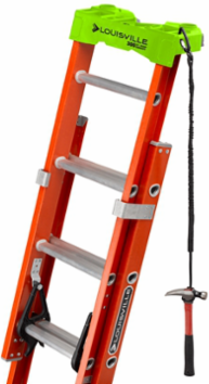

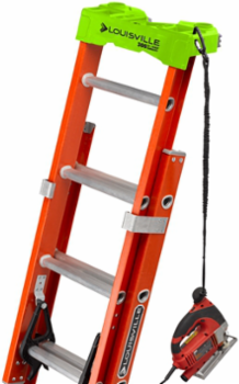

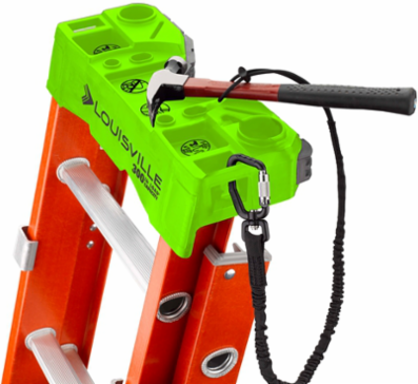

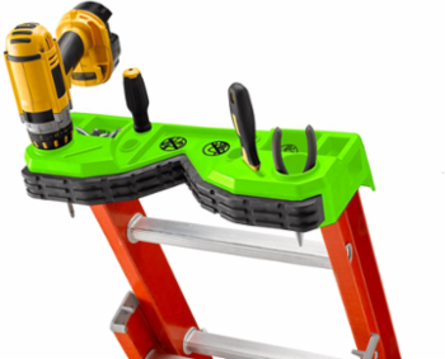

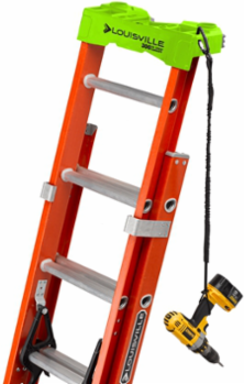

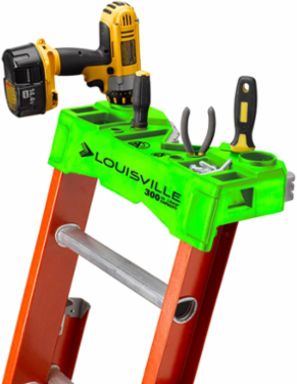

- ProTop With Multiple Tool Slots And Magnet

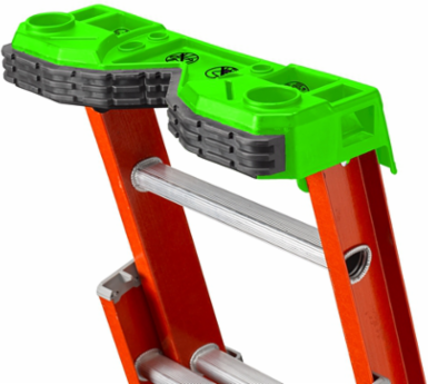

- V-Shape ProTop Allows The Ladder To Lean Against Walls
- Buildings And Poles
- Patented Quicklatch Runglock System
- Steel Swivel Safety Shoe With Metal Shield
- Mar-Resistant Rail End Caps
- Outside Slide Guides
- ANSI Certified
- OSHA Certified
Documentation & Downloads
Specifications
Key Specifications
- Style
- Standard
- Load Capacity (lbs)
- 300
- Number of Steps
- 28
- Step Depth
- 1.5
- Weight
- 60
- Closed Volume (cu. ft.)
- 11.434
- Closed Depth
- 6.375
- Section Length (ft)
- 14
- Max. Extended Length (ft)
- 25
- Inside Width Base (in)
- 14.645
- Outside Width Base (in)
- 17.045
Duty RatingType IA
Size28
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)25’
Closed Height174
Closed Width (in)17.812
Total Length (ft)28
Rail Depth (in)3.25
Inside Width Fly (in)13.688
Outside Width Fly (in)16.088
