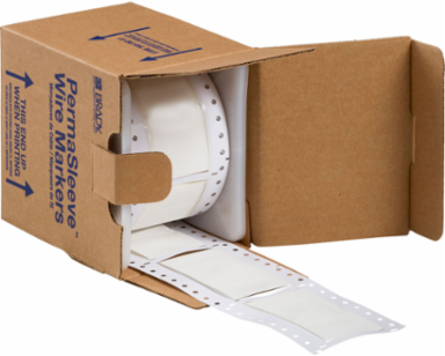

Brady 2LSZH-2000-2-WT-S Low Smoke Zero Halogen Double Sided PermaSleeve Wire Marking Sleeves, 2" Dia x 2" W, Roll of 50, White
Brady 2LSZH-2000-2-WT-S Low Smoke Zero Halogen Double Sided PermaSleeve Wire Marking Sleeves, 2" Dia x 2" W, Roll of 50, White
- MPN: 2LSZH-2000-2-WT-S
- UPC: 662820826026
- PPN: BRD-2LSZH-2000-2-WT-S
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$375.07/ EA
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
- Quantity per Roll
- 50
- Recommended Ribbon
- IP-R6007; R6007
- Shape
- Rectangle
- Sleeve Slits
- No
- Total Qty per Pack
- 50 Label(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-7641
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 50.8 mm
- Dimensions (Metric)
- 50.80 mm W x 80.40 mm H
- Height (in/ft/yd)
- 3.165 in
- Maximum Service Temperature °C
- 105 °C
- Maximum Wire Diameter (in/ft/yd)
- 1.95 in
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 1 in
- Recovered Diameter (in/ft/yd)
- 1 in
- Recovered Wall Thickness (in/ft/yd)
- 0.038 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (mm/cm/m)
- 50.8 mm Dia x 50.8 mm W
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Vertical Repeat (mm)
- 101.60 mm
- Web Width (mm/cm/m)
- 88.65 mm
Brand NameBrady®
Enables Industry ComplianceASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; Halogen Free (DIN VDE 0472 part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll50
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; BBP72; i7100
Quantity per Row1
Ribbon SeriesR6600
Shrink Ratio2:1
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Total Quantity50
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-NumberB-7641
Diameter as Supplied (in/ft/yd)2 in
Dimensions3.165 in H
Dimensions 23.165 in H
Height (mm/cm/m)80.40 mm
Maximum Service Temperature °F221 °F
Maximum Wire Diameter (mm/cm/m)48.26 mm
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)25.40 mm
Recovered Diameter (mm/cm/m)25.4 mm
Recovered Wall Thickness (mm/cm/m)0.97 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)2 in Dia x 2 in W
Sleeve Width (in/ft/yd)2 in
Vertical Repeat4 in
Web Width (in/ft/yd)3.49 in
Wire Diameter Range1 in to 1.95 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
