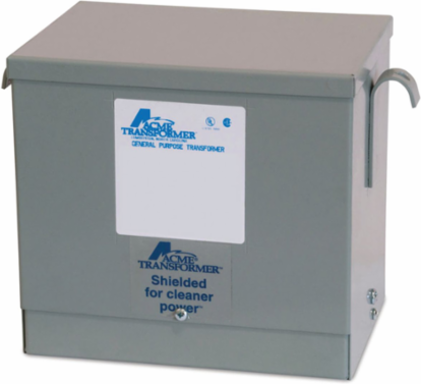

Acme Electric T2A53310SS Low Voltage Distribution Transformer 9kVA 480D/208Y-120V Wall Mount
- MPN: T2A53310SS
- UPC: 047503130643
- PPN: HBL-T2A53310SS
- UNSPSC: 39121027
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 9kVA, 316 Stainless Steel
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 9.0
- Primary Voltage
- 480D V
- Product Type
- Dry Type Distribution Transformer
- Taps % Steps
- 5.0%
- Height
- 14.03 in
- Mounting
- Wall
- UL Insulation Class
- 180°C
- Weight
- 180 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503130643
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
BNFC Taps2
Dimensions11.52 in x 17.77 in x 14.03 in
Max Temperature Rise115 Degrees Celsius
Product CategoryDry Type Distribution Transformer
Secondary Voltage208Y/120 V
Frequency Rating60 Hz
Length11.52 in
Width17.77 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorN - Non-stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE19.000x18.000x15.000 (in)
Pallet Height38.000 in
Pallet Weight1770.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
