Low Voltage Distribution Transformer 100kVA, 600/120V/240V, 32.9 In Width
Acme Electric

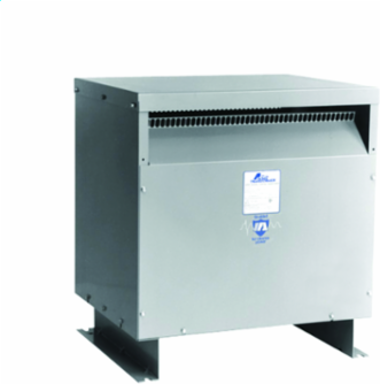

Acme Electric TP531223S Low Voltage Distribution Transformer 100kVA, 600/120V/240V, 32.9 In Width

  • MPN: TP531223S
  • UPC: 047503006993
  • PPN: HBL-TP531223S
  • UNSPSC: 39121001
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 100kVA

Features

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection
  • Optional weather shield - WSA4

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
BNFC Taps
4
Dept of Energy Regulation
Meets or exceed U.S. DOE 10 CFR Part 431
kVA
100.0
Product Category
Dry Type Distribution Transformer
Secondary Voltage
120/240 V
Frequency Rating
60 Hz
Length
29.87 in
Primary Voltage
600 V
UL Insulation Class
220°C
Weight
525 lb.
Mounting Type
Floor
ARRA Compliant
Contact Manufacturer
Freight Class Code
06342001
Image Actual Or Representative
R
Sub Class Code
D10D100
Winding Material
AL
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00047503006993
Pallet Length
43.000 in
Pallet Width
40.500 in
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions29.87 in x 32.9 in x 41.52 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Height41.52 in
MountingFloor
Width32.9 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 2
Class CodeD10
Harmonization Code8504330040
Replaced Catalog NumberTI531223S
Electrostatic ShieldShielded
ConstructionVentilated
BOX SIZE49.000x43.000x40.500 (in)
Pallet Height49.000 in
Pallet Weight600.000 lb.
NAICS Code335311
